Connector Parts: Dust Cap, Blue Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Crimp Sets, Ring, Black Red Boot, Blue Clip
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.
| Mode | Single mode(SM) | |||
| Polish | PC/UPC | |||
| Insertion Loss | ≤0.30 dB | |||
| Return Loss | ≥50dB | |||
| Test wavelength | 1310/1550nm | |||
| Durability(500 Matings) | ≤0.20dB | |||
| Operating Temperature | -40℃~+60℃ | |||
| Storage Temperature | -40℃~+85℃ | |||
| Fire Resistant | IEC 60794-2-30 | |||
| Standards-Compliant | ROHS, IEC and GR-326 | |||
| Fiber Type | Single mode(SM) | |||
| G652D G655 G657A1 G657A2 G657B3 | ||||
| Fiber Brand | YOFC, Corning, Fujikura, Fiberhome | |||
| Cord Type | Duplex | |||
| Cable Diameter | 1.8mm/2.0mm/3.0mm | |||
| Cable Jacket | OFNR, LSZH, OFNP, NYLON, HDPE, TPE, TPU | |||
| Cable Color | SM: Yellow; MM: Orange; 10G: Aqua... Customized | |||
| Length(m) | 0.5m, 1m, 2m, 3m, 5m, 25m, 50m, 100m... Customised | |||

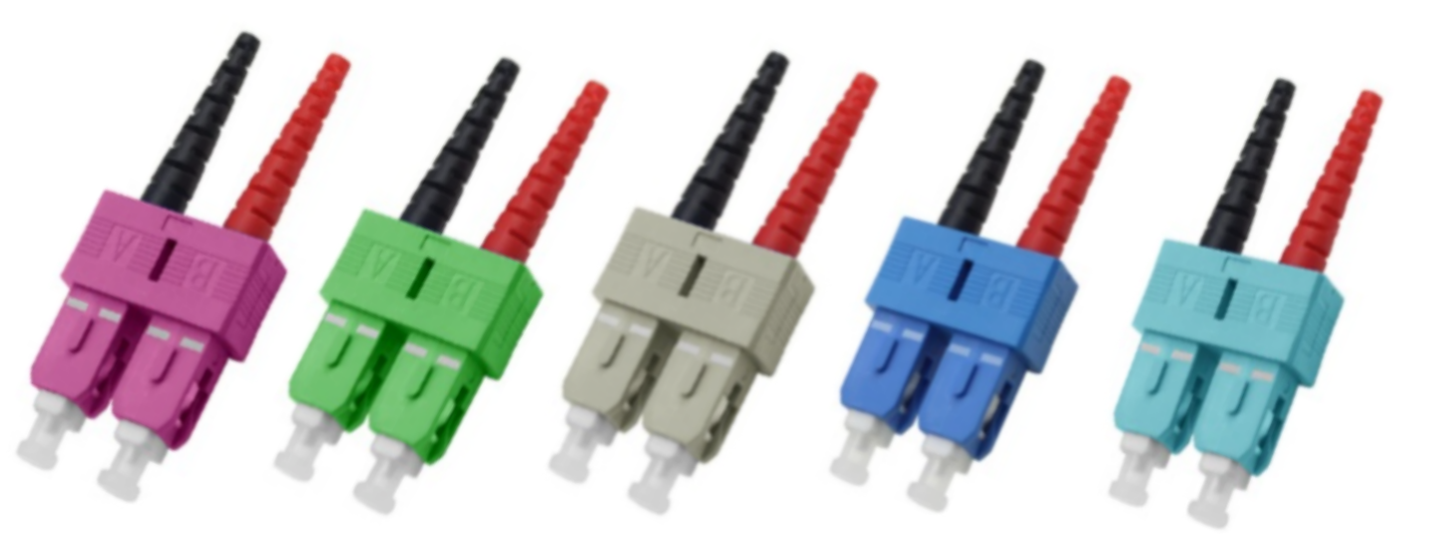

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)
Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)
