SC/PC MM 1.8/2.0/3.0mm DX Connector

SC/PC MM 1.8/2.0/3.0mm DX Connector

(0 reviews)
Industry Certified

Connector Parts: Dust Cap, Beige Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Crimp Sets, Ring, Black Red Boot, Beige Clip

Inquiry Portal & Downloads

24/7 After-Sales Support

Troubleshooting assistance and system compatibility solutions, available whenever you need them.

Customization Services

Tailored fiber count, length, and sheath color options to meet your specific requirements.

Specifications
Certifications
Reviews

Details:

  • Fiber Count: Duplex
  • Fiber Mode: Multimode
  • Polish Type: PC/UPC
  • Cable Diameter: 1.8/2.0/3.0mm

Application：

  • Test Equipment
  • Telecommunication Networks
  • Local Area Networks (LANs)
  • Data Processing Networks
  • Premise Installations
  • Wide Area Networks (WANs)
  • Industrial, Medical & Military
  • CATV, Metro
  • Active Device Termination

Features:

  • Unique Push-Pull Design and Function
  • Easy to Assemble and Use
  • Low Insertion Loss and Back Reflection
  • High Repeatability and Reliability
  • Telcordia GR-326 Qualified
ModeMultimode(MM)
PolishPC
Insertion Loss≤0.30 dB
Return Loss≥40dB
Test wavelength850/1300nm
Durability(500 Matings)≤0.20dB
Operating Temperature-40℃~+60℃
Storage Temperature-40℃~+85℃
Fire ResistantIEC 60794-2-30
Standards-CompliantROHS, IEC and GR-326
Fiber TypeMultimode(MM)
OM1/OM2
Fiber BrandYOFC, Corning, Fujikura, Fiberhome
Cord TypeDuplex
Cable Diameter1.8mm/2.0mm/3.0mm
Cable JacketOFNR, LSZH, OFNP, NYLON, HDPE, TPE, TPU
Cable ColorSM: Yellow; MM: Orange; 10G: Aqua... Customized
Length(m)0.5m, 1m, 2m, 3m, 5m, 25m, 50m, 100m... Customized

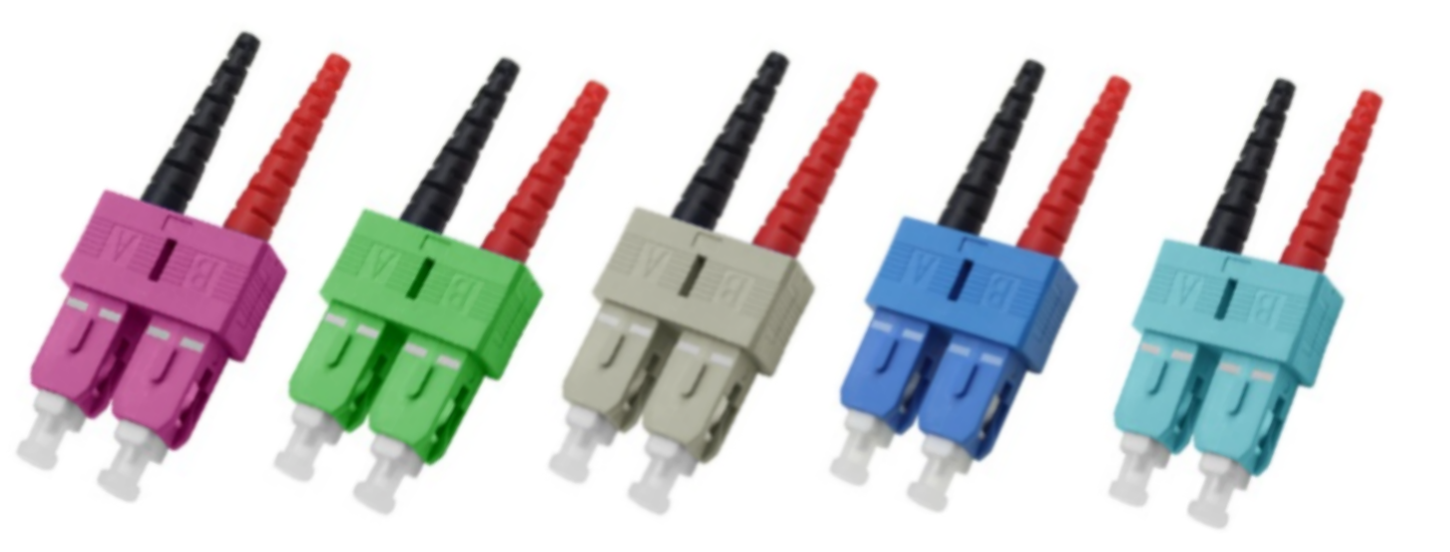

Housing Optional Colors: Blue, Green, Beige,  Aqua, Violet, Lemon Green (Color can be customized)

Boot  Optional Colors: Blue, Green, Beige,  Aqua, Violet, Lemon Green (Color can be customized)

Product Certifications

DOT-12136.RE.01-A

Products comply with DOT-12136.RE.01-A testing standards for quality assurance.

View Certificate

RoHS Compliance

We comply with RoHS directives, ensuring our products are free from restricted hazardous substances.

View Certificate

ISO 9001:2015

We are certified to ISO 9001:2015, ensuring consistent quality across all stages of product development and delivery.

View Certificate

CE Marking

Our products bear the CE mark, confirming compliance with European Union health, safety, and environmental standards.

View Certificate

CPR All Types DCa

All DCa armored cable types are CPR certified for fire safety and environmental performance.

View Certificate

UL Recognized (FNR)

Components are UL Recognized (FNR), supporting safe integration into end-use devices.

View Certificate

Quality Testing

Testing Compliance

Factory Acceptance Test (FAT) 100%
Environmental Testing 100%
Mechanical Testing 100%
Optical Performance 100%
