Connector Parts: Dust Cap, Violet Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Crimp Sets, Ring, Black Red Boot, Violet Clip
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.
Details:
Application：
Features:
| Mode | Multimode(MM) | |||
| Polish | PC | |||
| Insertion Loss | ≤0.30 dB | |||
| Return Loss | ≥40dB | |||
| Test wavelength | 850/1300nm | |||
| Durability(500 Matings) | ≤0.20dB | |||
| Operating Temperature | -40℃~+60℃ | |||
| Storage Temperature | -45℃～+85℃ | |||
| Fire Resistant | IEC 60794-2-30 | |||
| Standards-Compliant | ROHS, IEC and GR-326 | |||
| Fiber Type | Multimode(10G) | |||
| OM4 | ||||
| Fiber Brand | YOFC, Corning, Fujikura, Fiberhome | |||
| Cord Type | Duplex | |||
| Cable Diameter | 1.8mm/2.0mm/3.0mm | |||
| Cable Jacket | OFNR, LSZH, OFNP, NYLON, HDPE, TPE, TPU | |||
| Cable Color | SM: Yellow; MM: Orange; 10G: Aqua... Customized | |||
| Length(m) | 0.5m, 1m, 2m, 3m, 5m, 25m, 50m, 100m... Customized | |||

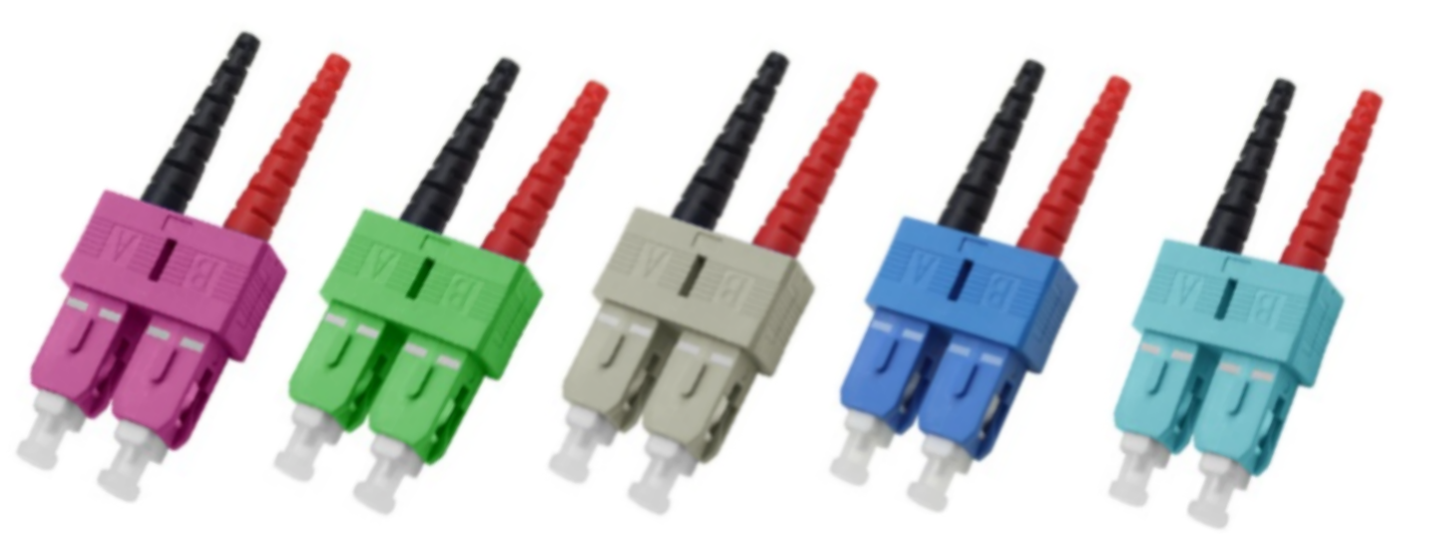

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)
Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)
