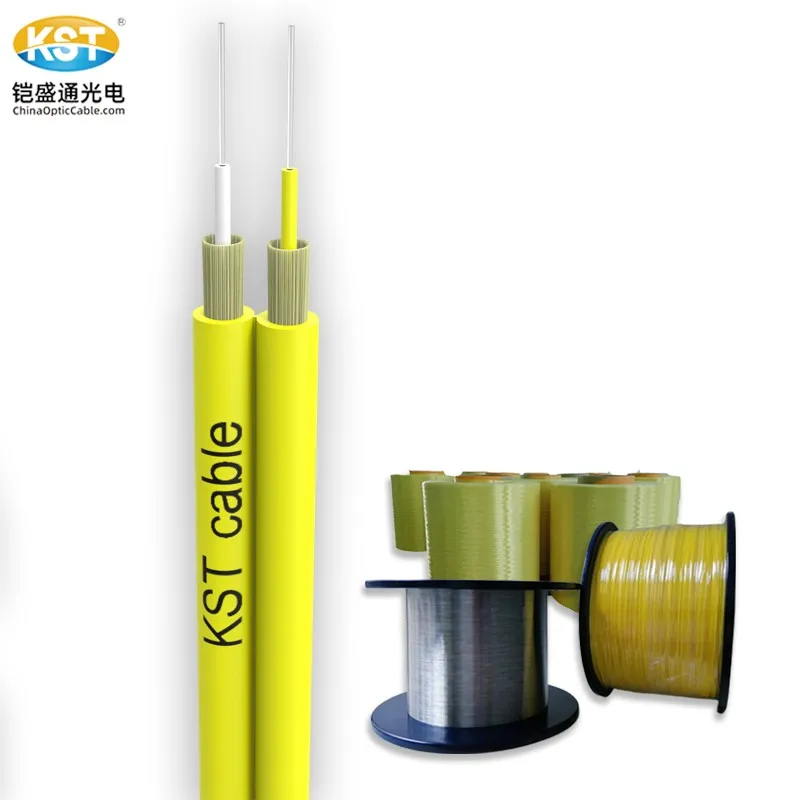

Duplex Fig-8 cable uses a single Φ900μm or Φ600μm tight-jacketed optical fiber as the optical transmission medium, covered with a layer of aramong as the force strengthening unit, and extruded with a layer of polyvinyl chloride (PVC) 、low smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant) and Polyurethane（TPU）sheath.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.
Product Introduction:
Duplex Fig-8 cable uses a single Φ900μm or Φ600μm tight-jacketed optical fiber as the optical transmission medium, covered with a layer of aramong as the force strengthening unit, and extruded with a layer of polyvinyl chloride (PVC) 、low smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant) and Polyurethane（TPU）sheath.
Product Application:
The optical fiber connects to a jumper or pigtail,Interconnection of instruments and communication equipment or Optical cables for indoor wiring.

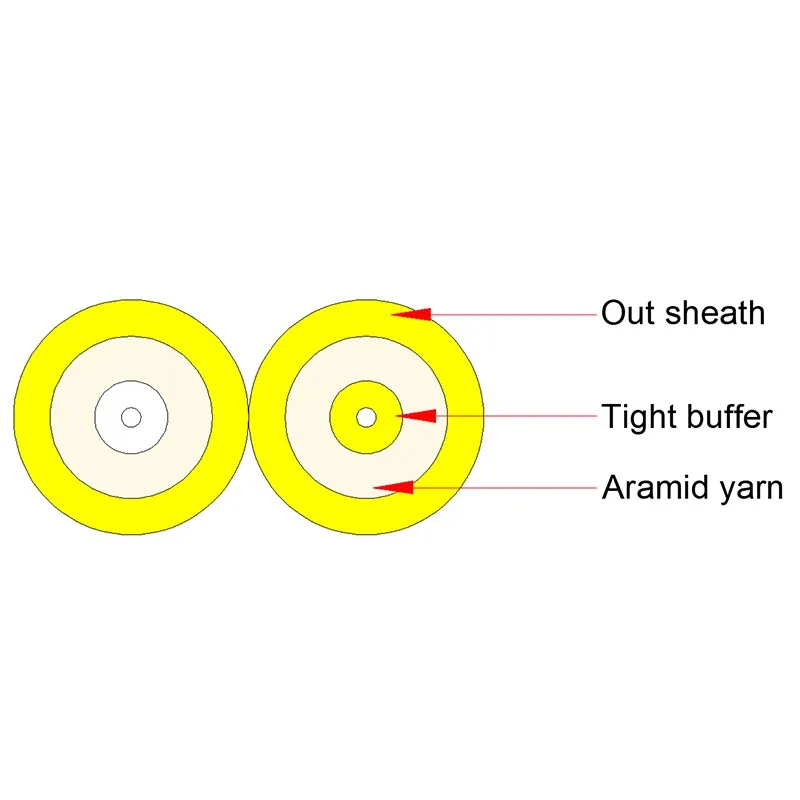

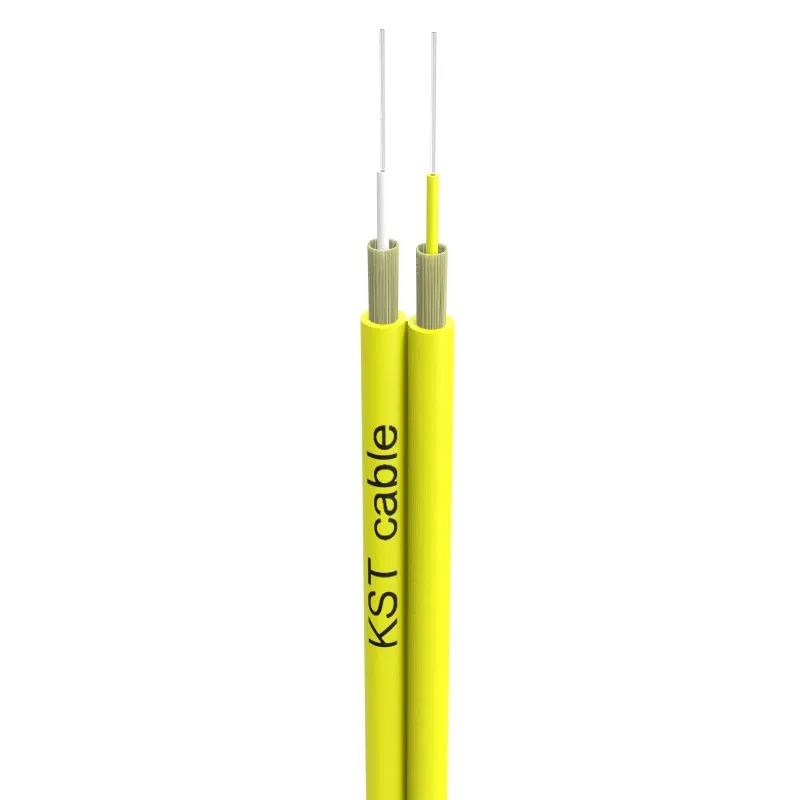

Cable construction details :
| Diameter (mm) | Tight buffer (mm) | Tensile Strength(N) | Crush Load(N/100mm) | Min Bending Radius | ||||||||
| Long term | Short term | Long term | Short term | Static | Dynamic | |||||||
| （1.2±0.1）*（2.4±0.2） | 0.55±0.05 | 50 | 100 | 100 | 500 | 10H | 20H | |||||
| （1.6±0.1）*（3.2±0.2） | 0.6±0.05 | 60 | 120 | 100 | 500 | 10H | 20H | |||||
| （1.9±0.1）*（3.8±0.2） | 0.9±0.05 | 60 | 120 | 100 | 500 | 10H | 20H | |||||
| （2.5±0.1）*（5.0±0.2） | 0.9±0.05 | 60 | 120 | 100 | 500 | 10H | 20H | |||||
| （2.8±0.1）*（5.6±0.2） | 0.9±0.05 | 120 | 225 | 100 | 500 | 10H | 20H | |||||
| （2.9±0.1）*（5.8±0.2） | 0.9±0.05 | 120 | 225 | 100 | 500 | 10H | 20H | |||||
Fiber characteristic:
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-150 | MM OM3-300 | MM OM4 | ||
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | ||
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ||
| Relative wavelength attenuation change @1310nm@1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | ||
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - | |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | ||
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | ||
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥700 | ≥1500 | ≥3500 | |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | ||
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥950 | ≥2000 | ≥4700 | |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | ||
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | 1295~1300 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| 1300~1320 | ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | - | 150 | 300 | 550 | ||
| Geometrical Charaeteristics | |||||||||||
| Cladding diameter | um | 124.8±0.7 | 125±0.7 | 125±0.7 | 125±1 | 125±1 | 125±2 | 125±2 | 125±2 | ||
| Core non-circularity | % | - | - | - | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Core diameter | um | - | - | - | 50±2.5 | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding non-circularity | % | ≤0.7 | ≤0.7 | ≤0.7 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ||
| Coating / cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| core / cladding concentricity error | um | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ||
| Environmental Charaeteristics | 1310nm & 1550nm & 1625nm | 1300nm & 850nm | |||||||||
| Temperature dependence Induced attenuation | -60℃~+85℃ ≤0.05dB/km | -60℃~+85℃ ≤0.15dB/km | |||||||||
| Temperature-humidity cycling Induced attenuation | -10℃~+85℃,98%RH ≤0.05dB/km | -10℃~+85℃,98%RH ≤0.2dB/km | |||||||||
| Watersoak dependence Induced attenuation | 23℃,for 30days ≤0.05dB/km | 23℃,for 30days ≤0.2dB/km | |||||||||
| Damp heat dependence Induced attenuation | 85℃ and 85%RH,for 30days ≤0.05dB/km | 85℃ and 85%RH,for 30days ≤0.2dB/km | |||||||||
| Dry hest aging | 85℃ ≤0.05dB/km | 85℃ ≤0.2dB/km | |||||||||
