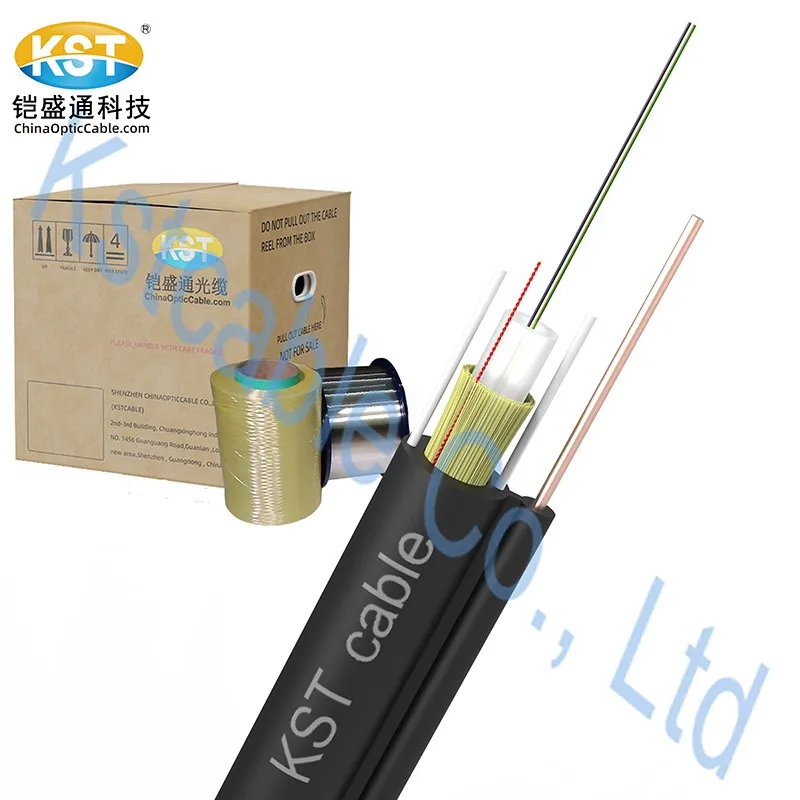

Figure 8 of the hybrid cable the suspension part is a 24AWG copper wire, and the optical cable part is jelly filled bundle tube, surrounded by aramid yarn reinforcing parts, and a layer of polyethylene (PE) or flame-retardant low smoke zero halogen polyolefin (LSZH) outer sheath is extruded on the outside.Two symmetrical FRP pieces are embedded inside the outer sheath.The maximum can reach 24 cores.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.
Product Introduction:

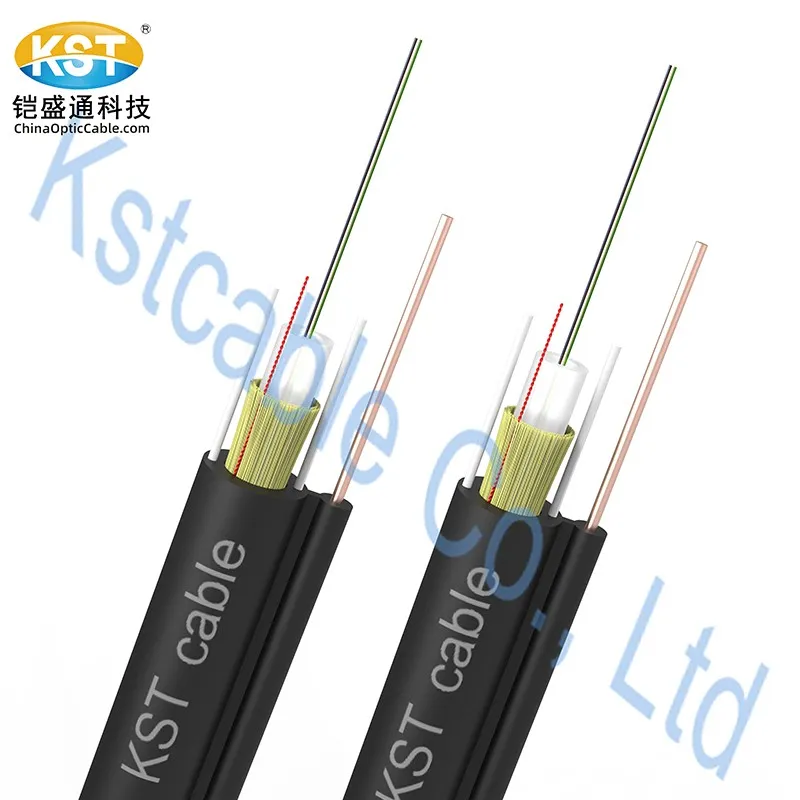

Figure 8 of the hybrid cable the suspension part is a 24AWG copper wire, and the optical cable part is jelly filled bundle tube, surrounded by aramid yarn reinforcing parts, and a layer of polyethylene (PE) or flame-retardant low smoke zero halogen polyolefin (LSZH) outer sheath is extruded on the outside.Two symmetrical FRP pieces are embedded inside the outer sheath.The maximum can reach 24 cores.
Product Application:
The optical fiber connects to a jumper or pigtail.
Indoor shaft level and forced ventilation level wiring.
Interconnection of instruments and communication equipment，such as remote video surveillance and 5G base stations that require long-distance power supply.
Product Standard:
Meet YD∕T 2159, ICEA-596, GR-409, IEC 60794 and other standards; In addition to ordinary PE products,LSZH products meet IEC 60332-1 certification.

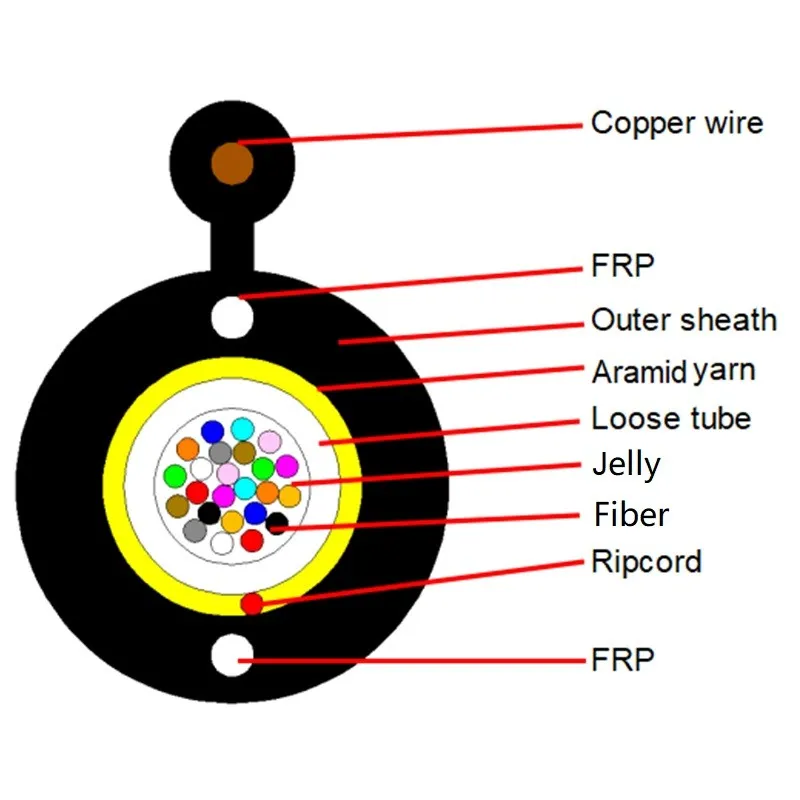

Cable construction details :
| Items | Description | |||||||
| Number of fiber | 1-12F | 24F | ||||||
| Loose tube | material | PBT | ||||||
| color | Natural | |||||||
| tube-filling | Jelly | |||||||
| diameter | 2.0±0.1mm | 2.5±0.1mm | ||||||
| Strength member | material | Aramid yarn | ||||||
| ɸ0.5mm FRP*2 | ||||||||
| Power Wire Elements | conductor | 24AWG*1 | ||||||
| diameter | 0.5mm | |||||||
| Outter sheath | material | PE / LSZH | ||||||
| color | Black | |||||||
| diameter | (1.45±0.1)x(5.0±0.3) | |||||||
| Operation and transport temperature（℃） | -20+70 | |||||||
| Min Bending Radius(mm) | Static | 10D | ||||||
| Min Bending Radius(mm) | Dynamic | 20D | ||||||
Tensile Strength(N) | Long term | 100 | ||||||
| Short term | 400 | |||||||
| Crush Load (N/100mm) | Long term | 100 | ||||||
| Crush Load (N/100mm) | Short term | 500 | ||||||
Fiber color：
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
| Color 13~24 will be marked with a tracer. | |||||
Fiber characteristic：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-150 | MM OM3-300 | MM OM4 | ||
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | ||
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ||
| Relative wavelength attenuation change @1310nm@1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | ||
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - | |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | ||
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | ||
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥700 | ≥1500 | ≥3500 | |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | ||
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥950 | ≥2000 | ≥4700 | |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | ||
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | 1295~1300 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| 1300~1320 | ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | - | 150 | 300 | 550 | ||
Geometrical Charaeteristics
| Cladding diameter | um | 124.8±0.7 | 125±0.7 | 125±0.7 | 125±1 | 125±1 | 125±2 | 125±2 | 125±2 | ||
| Core non-circularity | % | - | - | - | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Core diameter | um | - | - | - | 50±2.5 | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding non-circularity | % | ≤0.7 | ≤0.7 | ≤0.7 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ||
| Coating / cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| core / cladding concentricity error | um | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ||
| Environmental Charaeteristics | 1310nm & 1550nm & 1625nm | 1300nm & 850nm | |||||||||
| Temperature dependence Induced attenuation | -60℃~+85℃ ≤0.05dB/km | -60℃~+85℃ ≤0.15dB/km | |||||||||
| Temperature-humidity cycling Induced attenuation | -10℃~+85℃,98%RH ≤0.05dB/km | -10℃~+85℃,98%RH ≤0.2dB/km | |||||||||
| Watersoak dependence Induced attenuation | 23℃,for 30days ≤0.05dB/km | 23℃,for 30days ≤0.2dB/km | |||||||||
| Damp heat dependence Induced attenuation | 85℃ and 85%RH,for 30days ≤0.05dB/km | 85℃ and 85%RH,for 30days ≤0.2dB/km | |||||||||
| Dry hest aging | 85℃ ≤0.05dB/km | 85℃ ≤0.2dB/km | |||||||||
