The optical fiber connects to a jumper or pigtail Indoor shaft level and forced ventilation level wiring Interconnection of instruments and communication equipment
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.

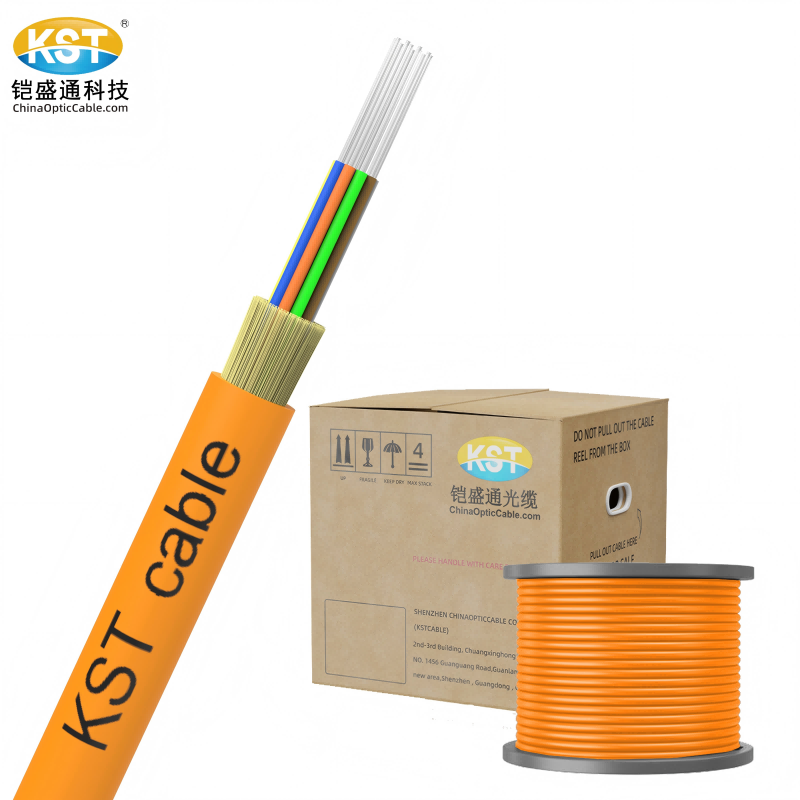

Cable construction details :
| Fiber count | Tight buffer (mm) | Diameter (mm) | Tensile Strength(N) | Crush Load(N/100mm) | Min Bending Radius | |||||||
| Long term | Short term | Long term | Short term | Static | Dynamic | |||||||
| 2F | 0.6 | 3.0 | 80 | 150 | 100 | 500 | 10D | 20D | ||||
| 4F | 0.9 | 5.0 | 130 | 440 | 100 | 500 | 10D | 20D | ||||
| 6F | 0.9 | 5.2 | 130 | 440 | 100 | 500 | 10D | 20D | ||||
| 8F | 0.9 | 5.6 | 130 | 440 | 100 | 500 | 10D | 20D | ||||
| 12F | 0.9 | 6.3 | 130 | 440 | 100 | 500 | 10D | 20D | ||||
| 16F | 0.9 | 7.2 | 130 | 440 | 100 | 500 | 10D | 20D | ||||
| 24F | 0.9 | 8.3 | 200 | 660 | 100 | 500 | 10D | 20D | ||||
| 48F | 0.9 | 10.5 | 200 | 600 | 100 | 500 | 10D | 20D | ||||
Fiber characteristic:
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-150 | MM OM3-300 | MM OM4 | ||
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | ||
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ||
| Relative wavelength attenuation change @1310nm@1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | ||
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - | |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | ||
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | ||
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥700 | ≥1500 | ≥3500 | |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | ||
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥950 | ≥2000 | ≥4700 | |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | ||
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | 1295~1300 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| 1300~1320 | ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | - | 150 | 300 | 550 | ||
Geometrical Charaeteristics:
| Cladding diameter | um | 124.8±0.7 | 125±0.7 | 125±0.7 | 125±1 | 125±1 | 125±2 | 125±2 | 125±2 | ||
| Core non-circularity | % | - | - | - | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Core diameter | um | - | - | - | 50±2.5 | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding non-circularity | % | ≤0.7 | ≤0.7 | ≤0.7 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ||
| Coating / cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| core / cladding concentricity error | um | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ||
| Environmental Charaeteristics | 1310nm & 1550nm & 1625nm | 1300nm & 850nm | |||||||||
| Temperature dependence Induced attenuation | -60℃~+85℃ ≤0.05dB/km | -60℃~+85℃ ≤0.15dB/km | |||||||||
| Temperature-humidity cycling Induced attenuation | -10℃~+85℃,98%RH ≤0.05dB/km | -10℃~+85℃,98%RH ≤0.2dB/km | |||||||||
| Watersoak dependence Induced attenuation | 23℃,for 30days ≤0.05dB/km | 23℃,for 30days ≤0.2dB/km | |||||||||
| Damp heat dependence Induced attenuation | 85℃ and 85%RH,for 30days ≤0.05dB/km | 85℃ and 85%RH,for 30days ≤0.2dB/km | |||||||||
| Dry hest aging | 85℃ ≤0.05dB/km | 85℃ ≤0.2dB/km | |||||||||
We comply with RoHS directives, ensuring our products are free from restricted hazardous substances.
View CertificateWe are certified to ISO 9001:2015, ensuring consistent quality across all stages of product development and delivery.
View CertificateComponents are UL Recognized (FNR), supporting safe integration into end-use devices.
