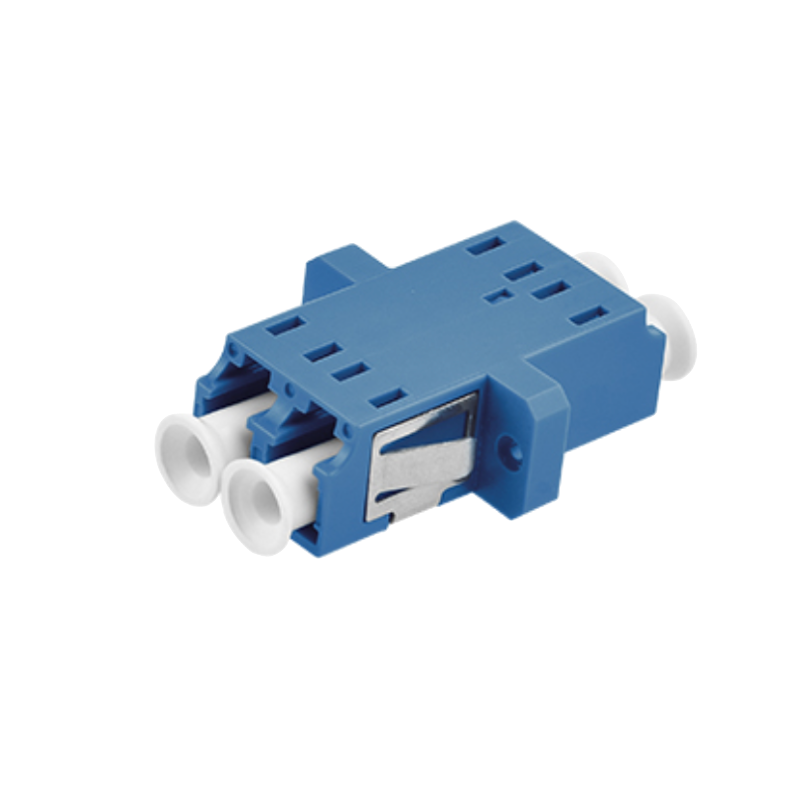

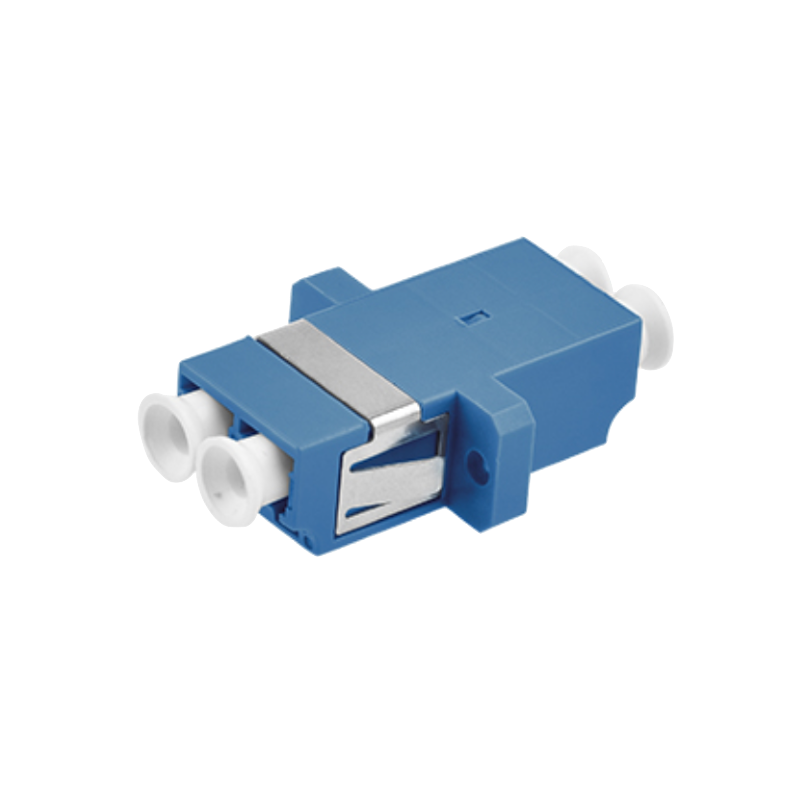

LC UPC DX Asymmetric Welding Adapter Without Flange Fiber optic adapter, also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.
| Adapter Type | LC | |||
| Body Style | Duplex | |||
| Connector Polish Type | UPC | |||
| Mounting Type | Without Flange | |||
| Connector Fiber Mode | Single mode(SM) | |||
| Alignment Sleeve Material | Ceramic | |||
| Durability | >1000 times | |||
| Color | Blue | |||
| Insertion Loss | ≤0.20dB | |||
| Durability(500 Matings) | ≤0.20dB | |||
| Operating Temperature | -40℃~+60℃ | |||
| Storage Temperature | -45℃~+85℃ | |||
| Fire Resistant | IEC61754 IEC 60874-1 | |||
| Standards-Compliant | ROHS, IEC and GR-326 | |||
Application:
Features:
We are certified to ISO 9001:2015, ensuring consistent quality across all stages of product development and delivery.
View CertificateWe comply with RoHS directives, ensuring our products are free from restricted hazardous substances.
View CertificateOur products are UL certified under File E329066, meeting North American safety standards.
View CertificateComponents are UL Recognized (FNR), supporting safe integration into end-use devices.
View CertificateOur telecommunications products are certified by ANATEL for the Brazilian market.
View CertificateOther outdoor fiber optic solutions you might be interested in
