SC/UPC SM 0.9mm Connector
High-Quality 0.9mm Single Mode Connector for SC/UPC Applications
High-Quality 0.9mm Single Mode Connector for SC/UPC Applications
High-Quality 0.9mm Single Mode Connector for SC/UPC Applications

SC/UPC SM 0.9mm Connector

(0 reviews)
Industry Certified

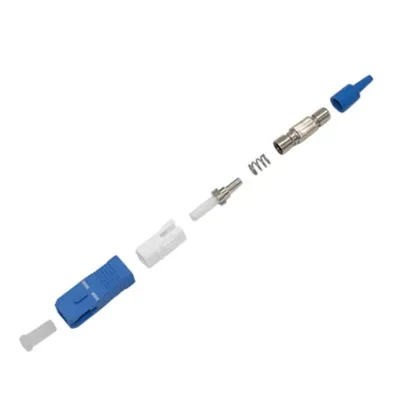

Connector Parts: Dust Cap, Blue Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Blue Boot

Inquiry Portal & Downloads

24/7 After-Sales Support

Troubleshooting assistance and system compatibility solutions, available whenever you need them.

Customization Services

Tailored fiber count, length, and sheath color options to meet your specific requirements.

Key Features & Benefits

Delivering superior performance, reliable quality, and seamless connectivity to meet all your fiber optic communication needs.

Wide Temperature Range
Operates efficiently in temperatures ranging from -40℃ to 70℃ and supports installation in -15℃ to 60℃, making it suitable for diverse climatic conditions.​
ITU-T Compliant
Meets ITU-T G.652D standards ensuring compatibility with global telecommunications networks and equipment.
Long Service Life
Designed for 25+ years of reliable service with minimal maintenance requirements in harsh outdoor environments.
Self-Supporting Design
The figure-8 structure combines the cable core with a steel messenger wire, eliminating the need for additional suspension hardware during aerial installation, reducing setup time and costs.​
Exceptional Mechanical Strength
Boasts long-term tensile strength of 3000N and short-term tensile strength of 7000N, ensuring resistance to wind loads and external pulls in aerial deployments.​
Specifications
Certifications
Reviews

Details:

  • Fiber Count: Simplex
  • Fiber Mode: Single Mode
  • Polish Type: UPC
  • Cable Diameter: 0.9mm
  • Insertion Loss: ≤0.25dB
  • Return Loss: ≥55dB (UPC)
  • Durability: >1000times
  • Operating Temp:-40~85°C

Application：

  • Test Equipment
  • Telecommunication Networks
  • Local Area Networks (LANs)
  • Data Processing Networks
  • Premise Installations
  • Wide Area Networks (WANs)
  • Industrial, Medical & Military
  • CATV, Metro
  • Active Device Termination

Features:

  • Unique Push-Pull Design and Function
  • Easy to Assemble and Use
  • Low Insertion Loss and Back Reflection
  • High Repeatability and Reliability
  • Telcordia GR-326 Qualified

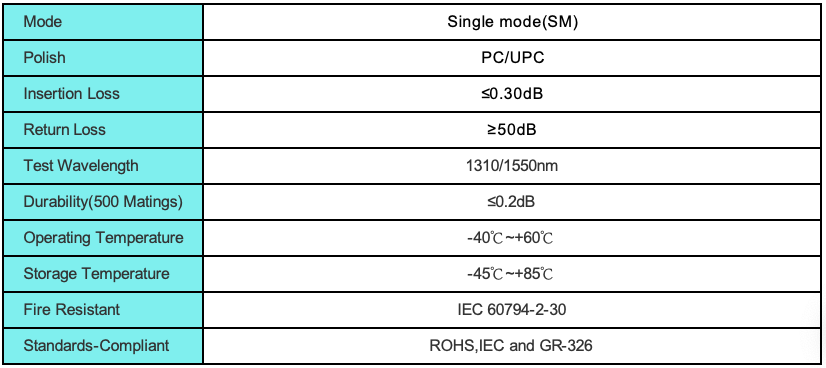

SC connector 表格1.png

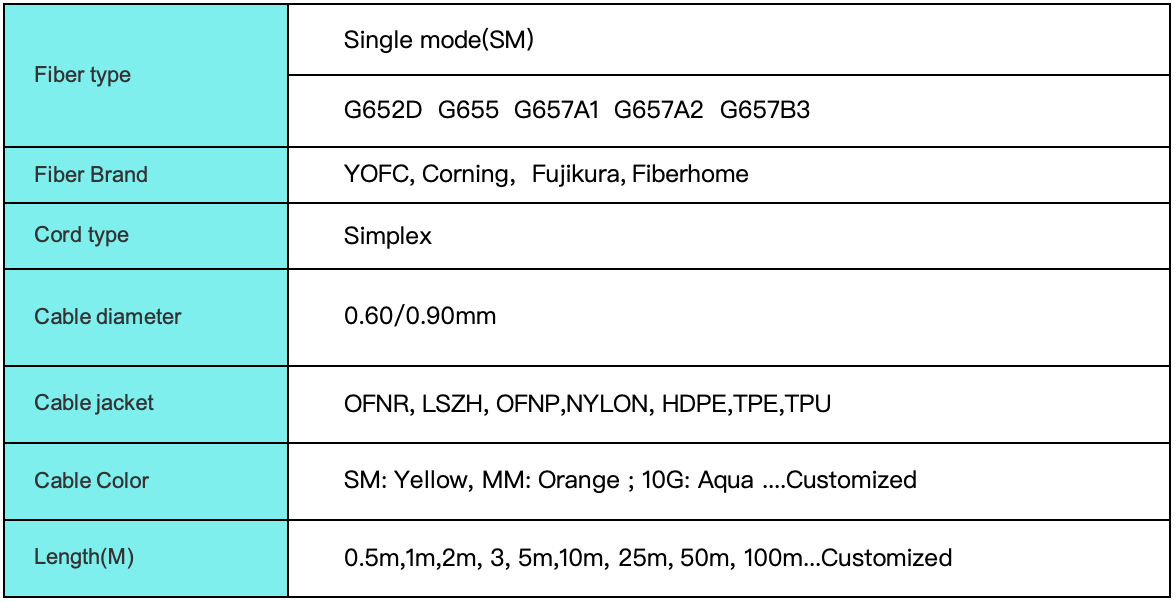

SC connector 表格2.png

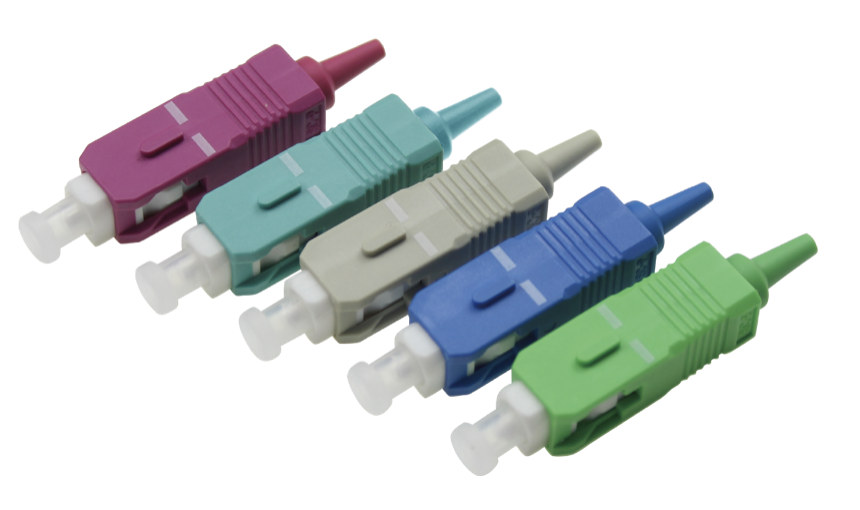

SC connector3.png

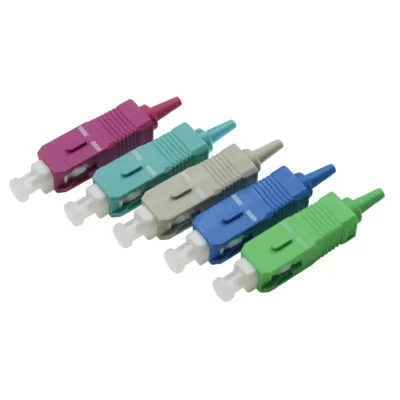

Housing Optional Colors: Blue, Green, Beige,  Aqua, Violet, Lemon Green (Color can be customized)

Boot  Optional Colors: Blue, Green, Beige,  Aqua, Violet, Lemon Green (Color can be customized)

Product Certifications

ANATEL

Our telecommunications products are certified by ANATEL for the Brazilian market.

View Certificate

CE Marking

Our products bear the CE mark, confirming compliance with European Union health, safety, and environmental standards.

View Certificate

CPR All Types DCa

All DCa armored cable types are CPR certified for fire safety and environmental performance.

View Certificate

UL File E329066

Our products are UL certified under File E329066, meeting North American safety standards.

View Certificate

UL Recognized (FNR)

Components are UL Recognized (FNR), supporting safe integration into end-use devices.

View Certificate

RoHS Compliance

We comply with RoHS directives, ensuring our products are free from restricted hazardous substances.

View Certificate

ISO 9001:2015

We are certified to ISO 9001:2015, ensuring consistent quality across all stages of product development and delivery.

View Certificate

DOT-12136.RE.01-A

Products comply with DOT-12136.RE.01-A testing standards for quality assurance.

View Certificate

DOT-08262.RE.01-B Test Report (ASU)

ASU products have passed testing per DOT-08262.RE.01-B for performance and reliability.

View Certificate

Quality Testing

Testing Compliance

Factory Acceptance Test (FAT) 100%
Environmental Testing 100%
Mechanical Testing 100%
Optical Performance 100%
