Fiber Optic Connectors

High Precision Fiber Connectors for Data Centers & Telecom Systems

Home > Products > Fiber Optic Connectors
SC/PC OM3 0.9mm Connector

SC/PC OM3 0.9mm Connector

(0 reviews)
Industry Certified

Connector Parts: Dust Cap, Aqua Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Aqua Boot

Inquiry Portal & Downloads

24/7 After-Sales Support

Troubleshooting assistance and system compatibility solutions, available whenever you need them.

Customization Services

Tailored fiber count, length, and sheath color options to meet your specific requirements.

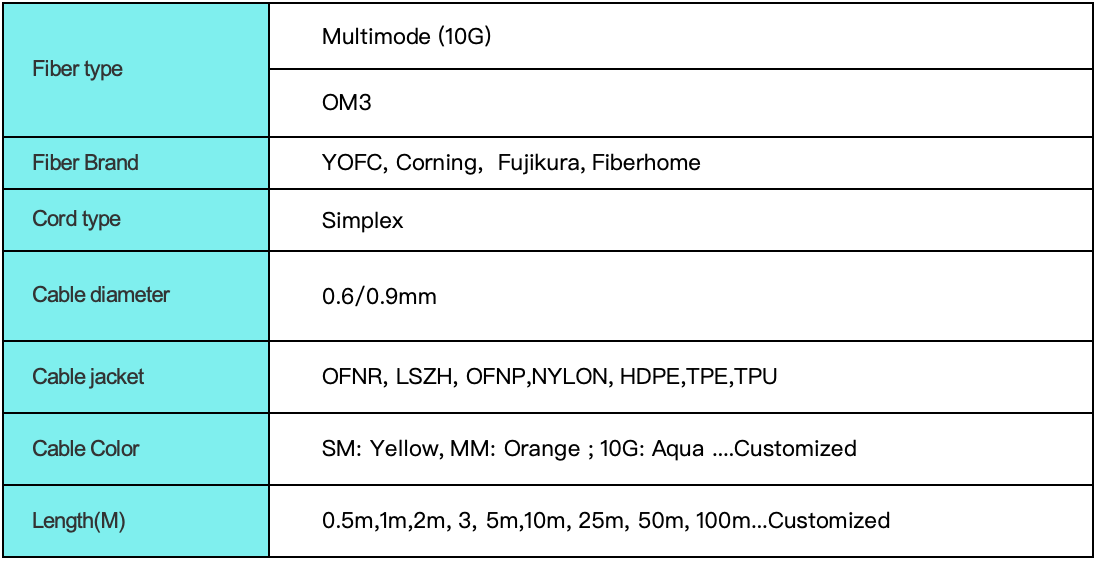

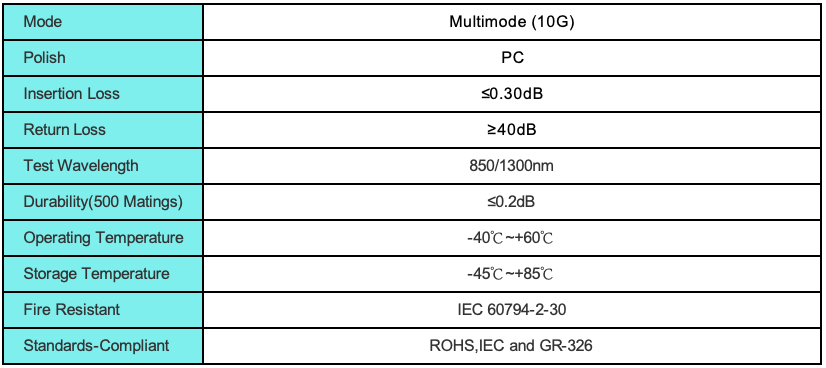

Specifications
Certifications
Reviews

Details:

  • Fiber Count: Simplex
  • Fiber Mode: Multimode
  • Polish Type: PC
  • Cable Diameter: 0.6 / 0.9mm

Application：

  • Test Equipment
  • Telecommunication Networks
  • Local Area Networks (LANs)
  • Data Processing Networks
  • Premise Installations
  • Wide Area Networks (WANs)
  • Industrial, Medical & Military
  • CATV, Metro
  • Active Device Termination

Features:

  • Unique Push-Pull Design and Function
  • Easy to Assemble and Use
  • Low Insertion Loss and Back Reflection
  • High Repeatability and Reliability
  • Telcordia GR-326 Qualified

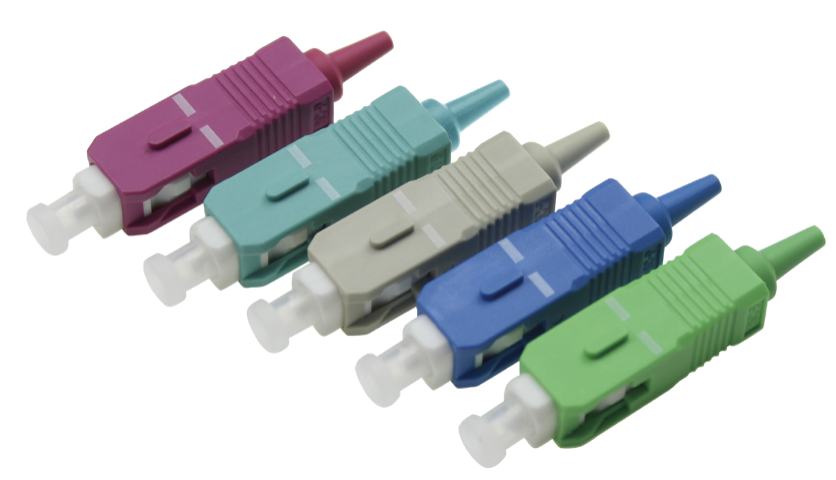

Housing Optional Colors: Blue, Green, Beige,  Aqua, Violet, Lemon Green (Color can be customized)

Boot  Optional Colors: Blue, Green, Beige,  Aqua, Violet, Lemon Green (Color can be customized)


Quality Testing

Testing Compliance

Factory Acceptance Test (FAT) 100%
Environmental Testing 100%
Mechanical Testing 100%
Optical Performance 100%
