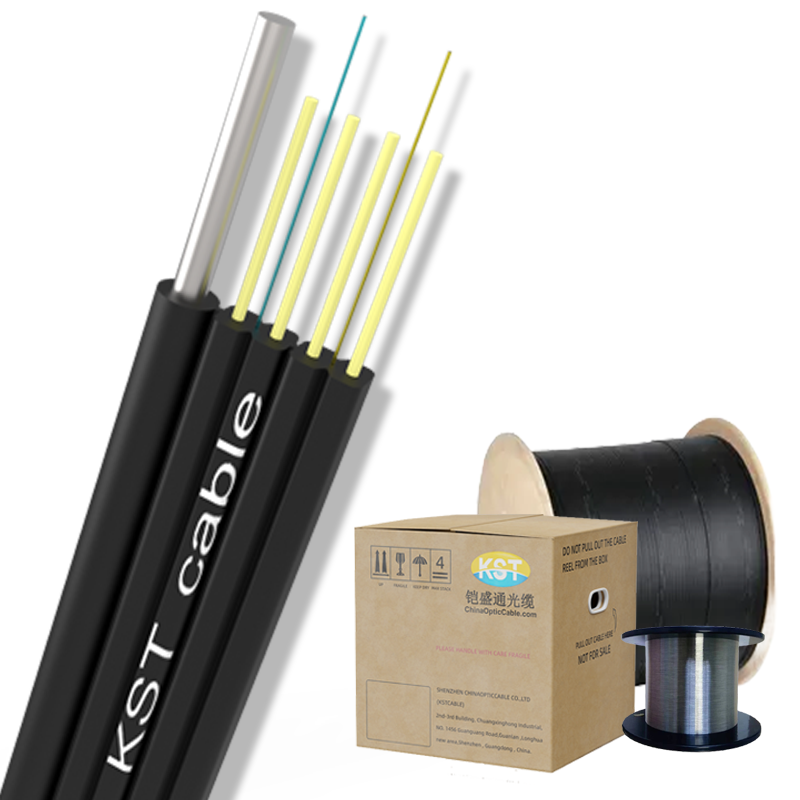

Optical fibers (2F) are positioned in the cable center，the optical cable consists of four metal or non-metal reinforcing parts, with an additional steel wire serving as a self-supporting strength component. then the cable is completed with flameproof black (or custom) color LSZH outer sheath to be a integrated product.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.
Product Introduction:
Optical fibers (2F) are positioned in the cable center，the optical cable consists of four metal or non-metal reinforcing parts, with an additional steel wire serving as a self-supporting strength component. then the cable is completed with flameproof black (or custom) color LSZH outer sheath to be a integrated product.
Product Application:
FTTH optical cables are the core components of fiber-to-the-home, mainly used to directly connect optical fibers to users' homes, achieving high-speed broadband access and the convergence of the three networks.
Product Standard:
Meet YD∕T 1997.1-2022、GR-20 and IEC 60794
Cable construction details :
| Number of fiber | 2F | |||||||
| Strength member | Material | KFRP | ||||||
| Diameter | 0.5mm | |||||||
| Self support Messenger | Material | Galvanized steel wire | ||||||
| Diameter | 1.2mm | |||||||
| Outer sheath | Material | FR LSZH | ||||||
| Color | Black | |||||||
| Diameter | 2.0±0.1x 6.5±0.3mm | |||||||
| Weight | 25kg/km | |||||||
| Installation Temperature range（℃） | -20+60 | |||||||
| Operation and transport temperature（℃） | -20+70 | |||||||
| Min Bending Radius(mm) | Static | 15mm | ||||||
Tensile Strength(N) | Long term | 300 | ||||||
| Short term | 660 | |||||||
| Crush Load (N/100mm) | Long term | 1000 | ||||||
| Short term | 2200 | |||||||
Fiber characteristic：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-150 | MM OM3-300 | MM OM4 | ||
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | ||
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ||
| Relative wavelength attenuation change @1310nm@1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | ||
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - | |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | ||
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | ||
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥700 | ≥1500 | ≥3500 | |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | ||
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥950 | ≥2000 | ≥4700 | |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | ||
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | 1295~1300 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| 1300~1320 | ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | - | 150 | 300 | 550 | ||
Geometrical Charaeteristics：
| Cladding diameter | um | 124.8±0.7 | 125±0.7 | 125±0.7 | 125±1 | 125±1 | 125±2 | 125±2 | 125±2 | ||
| Core non-circularity | % | - | - | - | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Core diameter | um | - | - | - | 50±2.5 | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding non-circularity | % | ≤0.7 | ≤0.7 | ≤0.7 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ||
| Coating / cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| core / cladding concentricity error | um | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ||
| Environmental Charaeteristics | 1310nm & 1550nm & 1625nm | 1300nm & 850nm | |||||||||
| Temperature dependence Induced attenuation | -60℃~+85℃ ≤0.05dB/km | -60℃~+85℃ ≤0.15dB/km | |||||||||
| Temperature-humidity cycling Induced attenuation | -10℃~+85℃,98%RH ≤0.05dB/km | -10℃~+85℃,98%RH ≤0.2dB/km | |||||||||
| Watersoak dependence Induced attenuation | 23℃,for 30days ≤0.05dB/km | 23℃,for 30days ≤0.2dB/km | |||||||||
| Damp heat dependence Induced attenuation | 85℃ and 85%RH,for 30days ≤0.05dB/km | 85℃ and 85%RH,for 30days ≤0.2dB/km | |||||||||
| Dry hest aging | 85℃ ≤0.05dB/km | 85℃ ≤0.2dB/km | |||||||||
