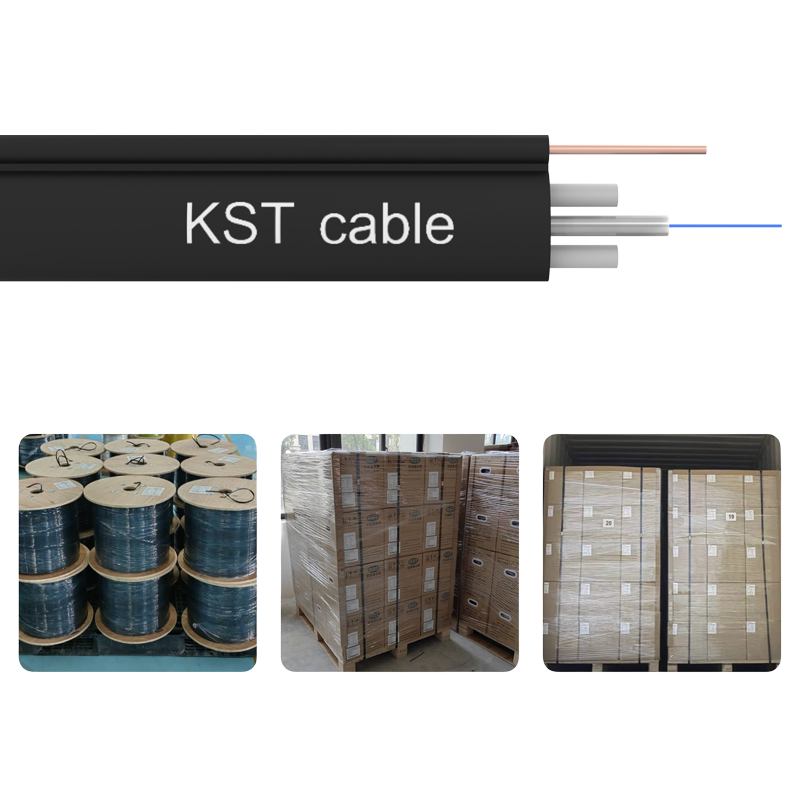

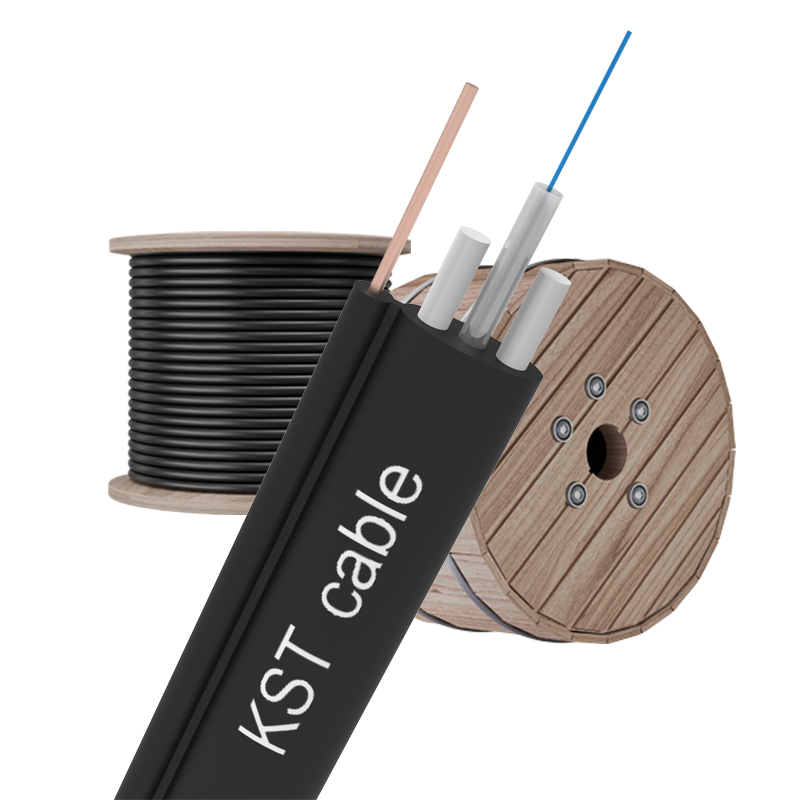

The optical fiber is placed in the center of the cable, which is composed of four metal or non-metal reinforcing components, in addition to a copper wire serving as its own supporting strength component.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.
Cable construction details：
| Number of fiber | 1-24F | ||||||||
| Fiber type | G657A1 | ||||||||
| strength member | Material | ɸ1.6FRP*2 | |||||||
| Loose tube | Material | PBT | |||||||
| Color | Natural | ||||||||
| Diameter | Ф3.0±0.2mm | ||||||||
| Power Wire Elements | Material | 24AWG | |||||||
| Diameter | 0.5mm | ||||||||
| Outer sheath | Material | PE | |||||||
| Color | Black | ||||||||
| Diameter | （4.5x8.0-9.8）±0.3mm | ||||||||
Cable Mechanical characteristic：
| Min Bending Radius(mm) | Long term | 15H | For flat optical cables, bend only in the flat direction | ||||||
| Short term | 30H | ||||||||
Tensile Strength(N) | Long term | 700 | |||||||
| Short term | 1550 | ||||||||
| Crush Load (N/100mm) | Long term | 1000 | For flat optical fibers, pressure can only be applied in the flat direction | ||||||
| Crush Load (N/100mm) | Short term | 2200 | |||||||
| Operation temperature （℃） | -40+70 | ||||||||
| Operation temperature （℃） | -40+70 | ||||||||
| Installation temperature（℃） | -10+60 | ||||||||
Optical characteristics：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
