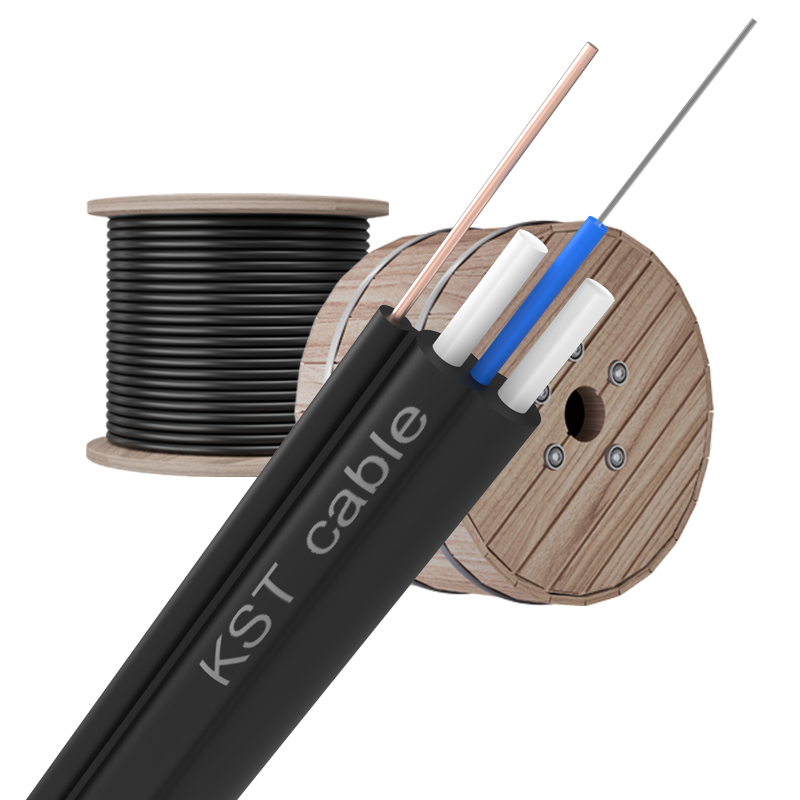

The optical fiber is placed in the center of the cable, which is composed of four metal or non-metal reinforcing components, in addition to a copper wire serving as its own supporting strength component.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.

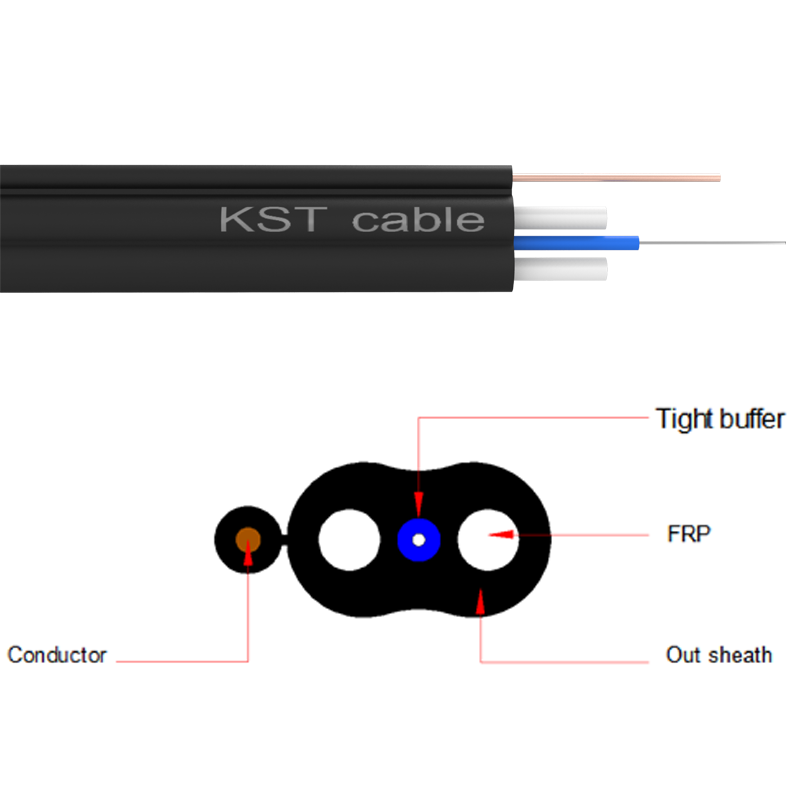

Cable construction details：
| Number of fiber | 1F | ||||||||
| Fiber type | Corning Ultra | ||||||||
| Fiber color | Natural | ||||||||
| Strength member | Material | ɸ1.2FRP*2 | |||||||
| Tight buffer | Material | PVC | |||||||
| Color | Blue | ||||||||
| Diameter | Ф0.85±0.05mm | ||||||||
| Power Wire Elements | Material | 24AWG | |||||||
| Diameter | 0.5mm | ||||||||
| Outer sheath | Material | PE | |||||||
| Color | Black | ||||||||
| Diameter | （3.0x6.6）±0.3mm | ||||||||
| Cable weight | 17.5 kg/km | ||||||||
Cable Mechanical characteristic：
| Min Bending Radius(mm) | Long term | 15D | |||||||
| Min Bending Radius(mm) | Short term | 30D | |||||||
Tensile Strength(N) | Long term | 400 | |||||||
| Short term | 1350 | ||||||||
| Crush Load (N/100mm) | Long term | 1000 | |||||||
| Crush Load (N/100mm) | short term | 2000 | |||||||
| Storage temperature （℃） | -40+70 | ||||||||
| Operation temperature （℃） | -40+70 | ||||||||
| Installation temperature（℃） | -30+70 | ||||||||
Optical characteristics：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
