Two parallel reinforcing elements enable the optical cable to have excellent compressive resistance, protecting the optical fibers.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.

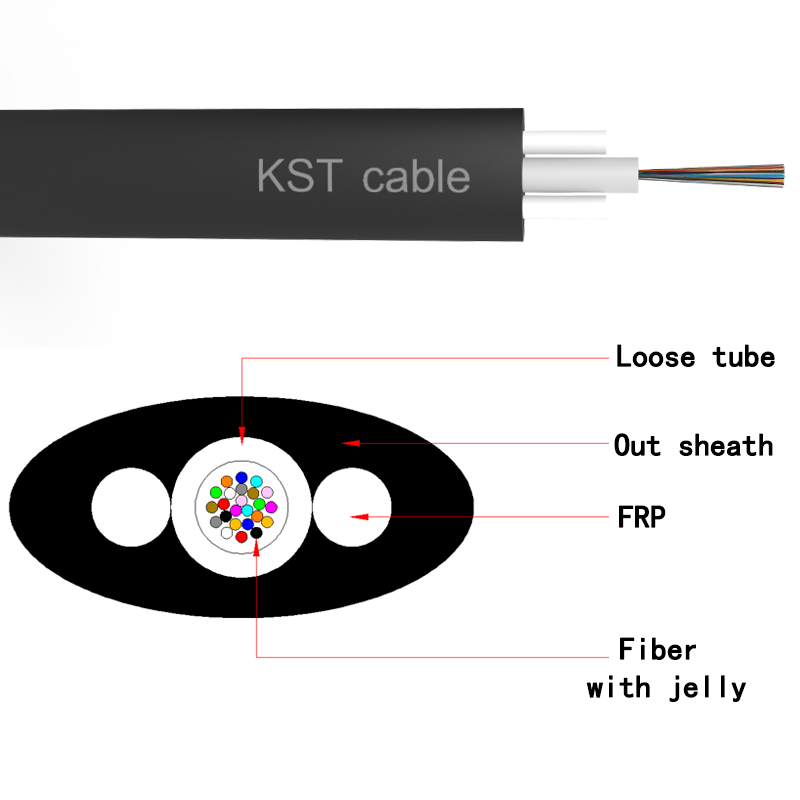

Cable construction details:
| Number of fiber | 1-24F | |||||||
| Loose tube | Material | PBT | ||||||
| Color | Natural | |||||||
| Diameter | 3.0±0.2 | |||||||
| Strength member | Material | ɸ1.6FRP*2 | ||||||
| Outer sheath | Material | PE | ||||||
| Color | Black | |||||||
| Diameter | （4.5x8.0）±0.3mm | |||||||
Cable Mechanical characteristic:
| Min Bending Radius(mm) | Long term | 30D | ||||||
| Min Bending Radius(mm) | Short term | 15D | ||||||
| Max Tensile Strength(N) | 1350 | |||||||
| Crush Load (N/100mm) | 2000 | |||||||
| Impact | Radius:300mm Impact energy:5j | |||||||
| Repeated bending | Bending radius:20D Cycles:25 | |||||||
| Temperature （℃） | -40+70 | |||||||
| Operation temperature （℃） | -40+70 | |||||||
| Storange temperature （℃） | -40+70 | |||||||
| Installation temperature（℃） | -20+60 | |||||||
Optical characteristics:
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
