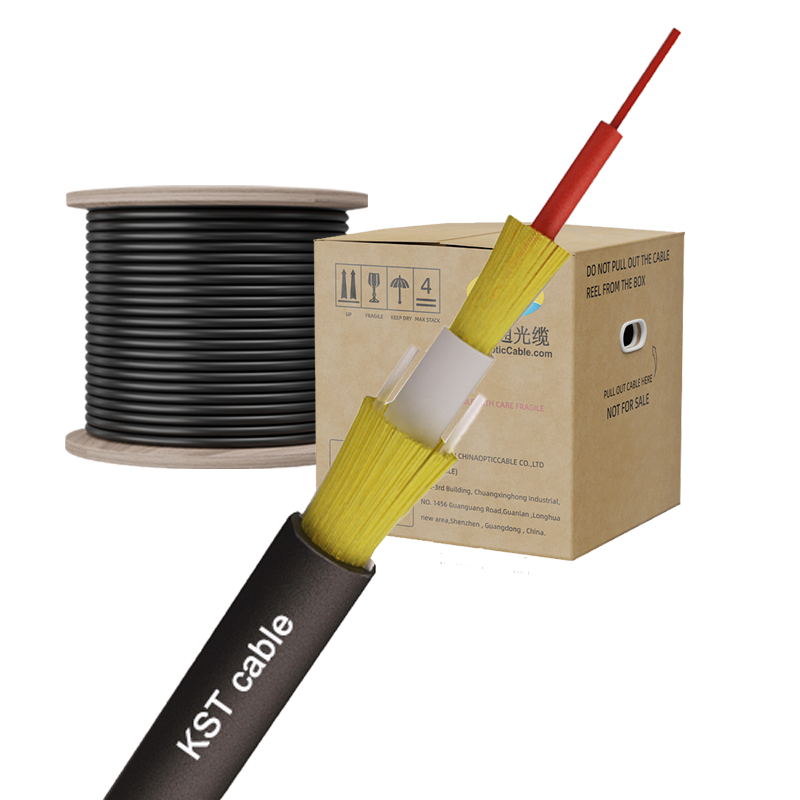

FTTH optical cables are the core components of fiber-to-the-home, mainly used to directly connect optical fibers to users' homes, achieving high-speed broadband access and the convergence of the three networks.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.

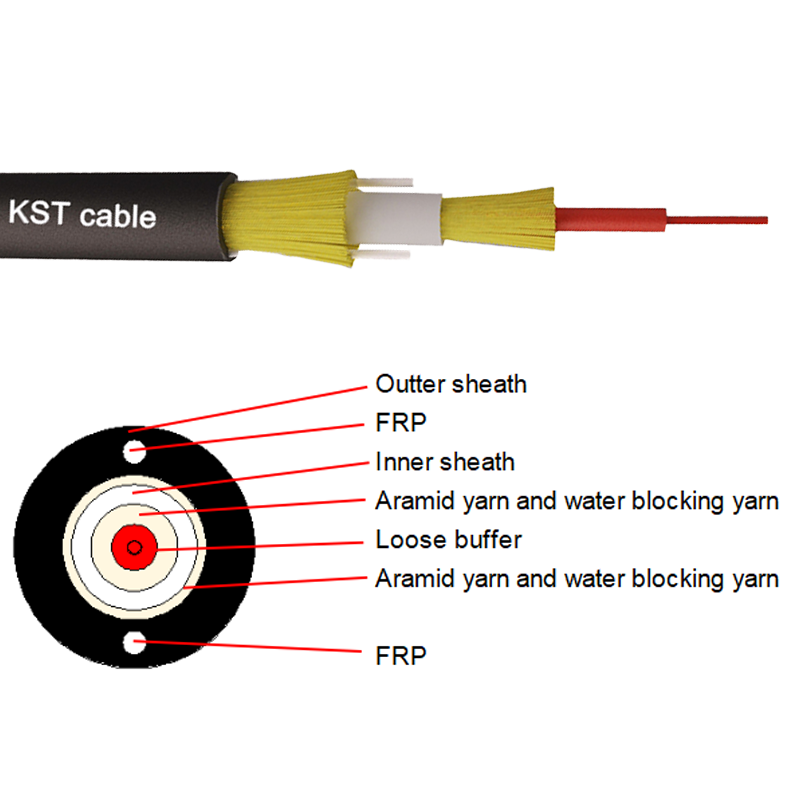

Cable construction details :
| Items | Description | ||||||||
| Number of fiber | 1F | 2F | 2F | 4F | |||||
| Fiber color | Red | Red、Blue | Red、Blue | Red、Blue、Green、Yellow | |||||
| Loose buffer | diameter(mm） | 0.95±0.05 | 0.6±0.05 | 1.0±0.05 | |||||
| color | Red | Red、Blue | Red | ||||||
| material | LSZH | ||||||||
| Strength member | material | Aramid yarn | |||||||
| FRP | |||||||||
| Water blocking system | material | Water blocking yarn | |||||||
| Inner sheath | diameter(mm） | 2.6±0.2 | 2.8±0.2 | 2.6±0.2 | |||||
| material | FR LSZH（CPR Dca） | ||||||||
| color | White（RAL 9003） | ||||||||
| Outer sheath | diameter(mm） | 5.0±0.3 | |||||||
| material | PE | ||||||||
| color | Black | ||||||||
| Installation temperature（℃） | -15+50 | ||||||||
| Storage or transportation（℃） | -20+70 | ||||||||
| Operation temperature（℃） | -20+70 | ||||||||
| Min Bending Radius(mm) | ≤60mm | ||||||||
Tensile Strength(N) | 400 | ||||||||
| Crush Load (N/cm) | 500 | ||||||||
Optical characteristics：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
