Riser Fiber Optic Cable is a type of fiber optic cable specifically designed for vertical channels within buildings. It is mainly used to connect network devices on different floors of multi-story buildings, such as in data centers, office buildings or residential buildings.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.

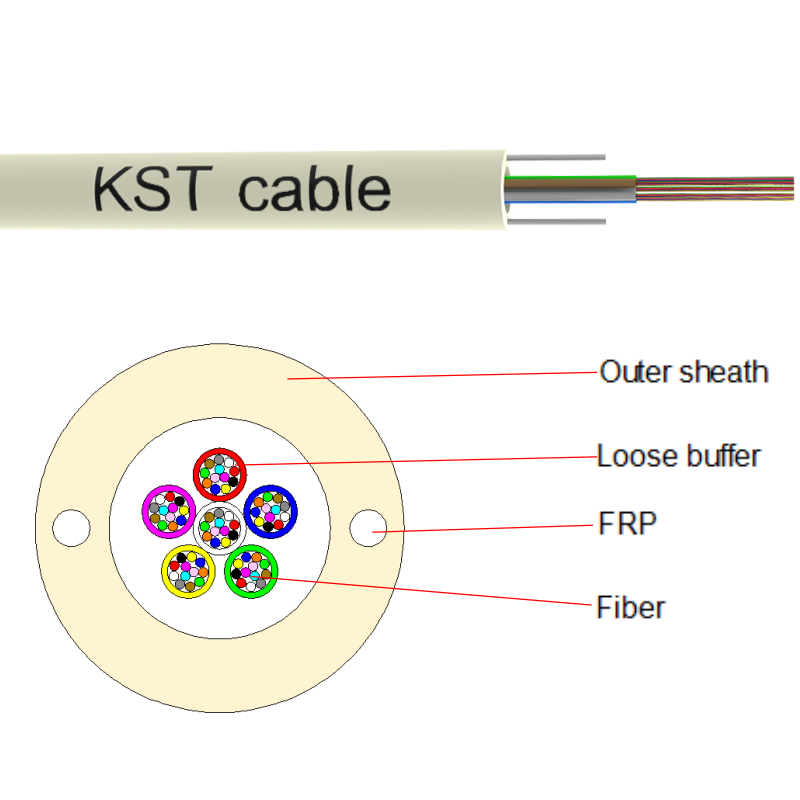

Cable construction details :
| Items | Description | |||||||||
| Number of fiber | 12 & 24 | 48 | 72 | |||||||
| Number of fibers per tube | 12 | |||||||||
| Loose buffer | Diameter(mm） | 1.45±0.1 | ||||||||
| Material | TPE | |||||||||
| Strength member | Material | ɸ1.0mm FRP *2 | ||||||||
| Outer sheath | Material | LSZH | ||||||||
| Color | Ivory | |||||||||
| Diameter(mm） | 8.5±0.5 | 9.2±0.5 | 10.0±0.5 | |||||||
| Installation Temperature（℃） | -5+60 | |||||||||
| StorageTemperature（℃） | -20+70 | |||||||||
| Operation and transport temperature（℃） | -20+60 | |||||||||
| Min Bending Radius(mm) | Static | 10D | ||||||||
| Min Bending Radius(mm) | Dynamic | 20D | ||||||||
Tensile Strength(N) | Long term | 400 | ||||||||
| Short term | 800 | |||||||||
| Crush Load (N/100mm) | Short term | 1000 | ||||||||
Optical characteristics：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
