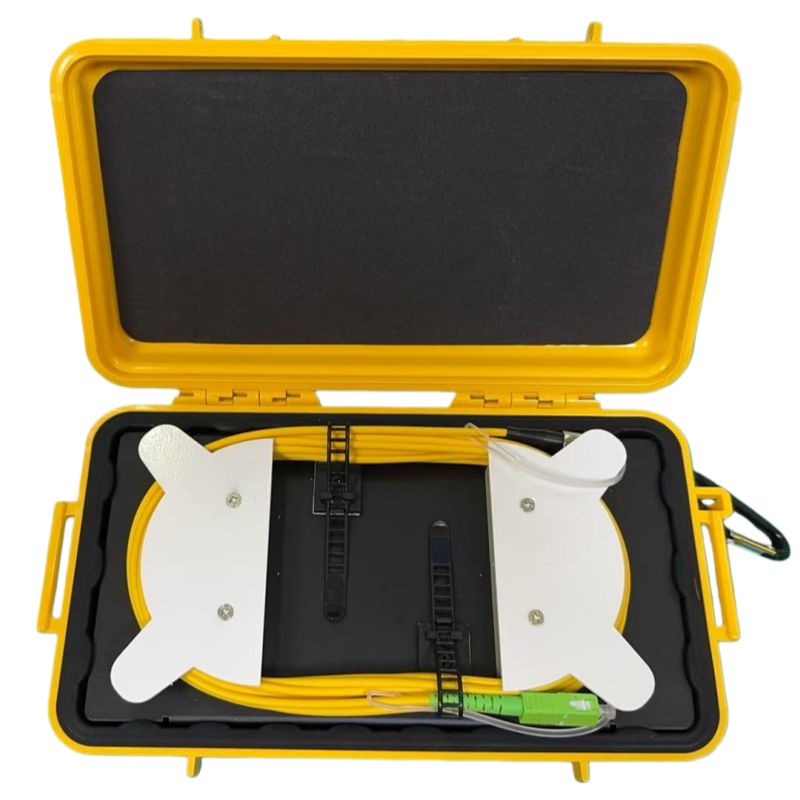

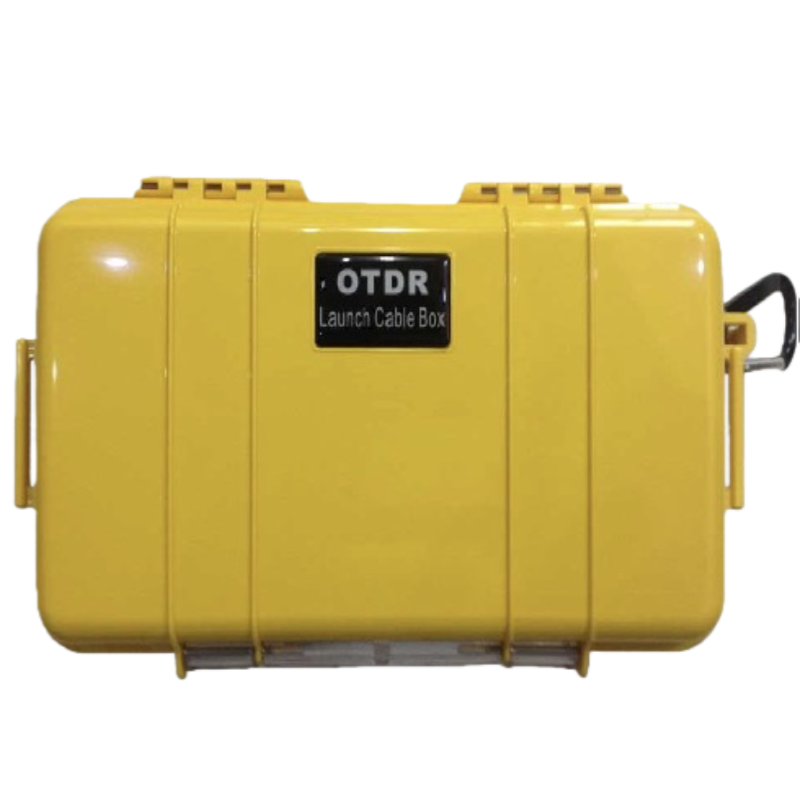

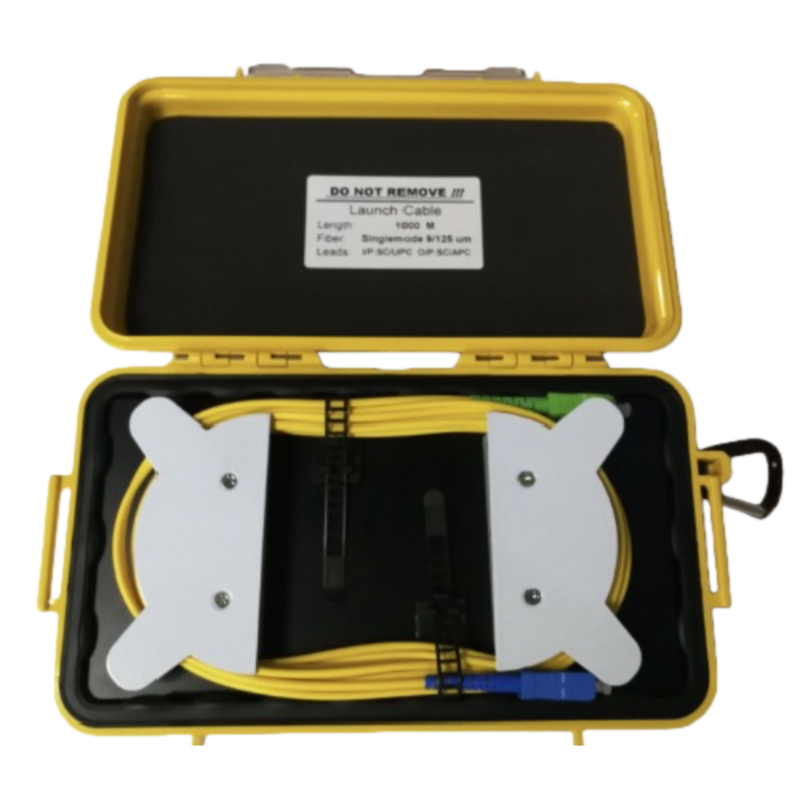

The OTDR Launch Cable Box connects the Optical Time Domain Reflectometer to the fiber under test, ensuring accurate and reliable measurements through a clean, stable connection.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.
OTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths.
Complied with or exceeds Standard
Specifications
| Mechanical & Environmental Characteristics | |
| Dimension | 23.8CMx 14.1CM x 6.7CM |
| Material | SR Polypropylene |
| Color | Yellow |
| Weight | 0.75kg without fiber |
| Packaging | Rugged, hard-shell transit case |
| Storage Temperature | -40O to +85O C |
| Operating Temperature | -40O to +85O C |
| Humidity | 0 to 95%, non-condensing |
Sales Catalog of HNK Telecommunication Products
Fiber Patch Co
| Fiber & Connector Characteristics | |
| Fiber Types | G652D, G657A, OM1, OM2, OM3, OM4 |
| Fiber Length (m) | 100 up to 2000 (max) |
| Lead Length | 2 Meters, 3mm buffer |
| Typical Loss | <0.5dB @ 1310 for 1000 meters |
| Connector Type | SC/LC/FC/ST |
| Polish | PC, UPC, APC |
| Return Loss* | UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) | <=0.2 (1000 times) |
| Exchangeability (dB) | <=0.2 |
Ordering information:
| OTDR-A-B-C-D | |
| A for Input connector; | B for Output connector; |
| C for Fiber Mode; | D for Length; |
| For Example: OTDR-SC-FCA-SM-1KM; 1KM SM, SC on I/P lead, FC/APC on O/P lead | |
