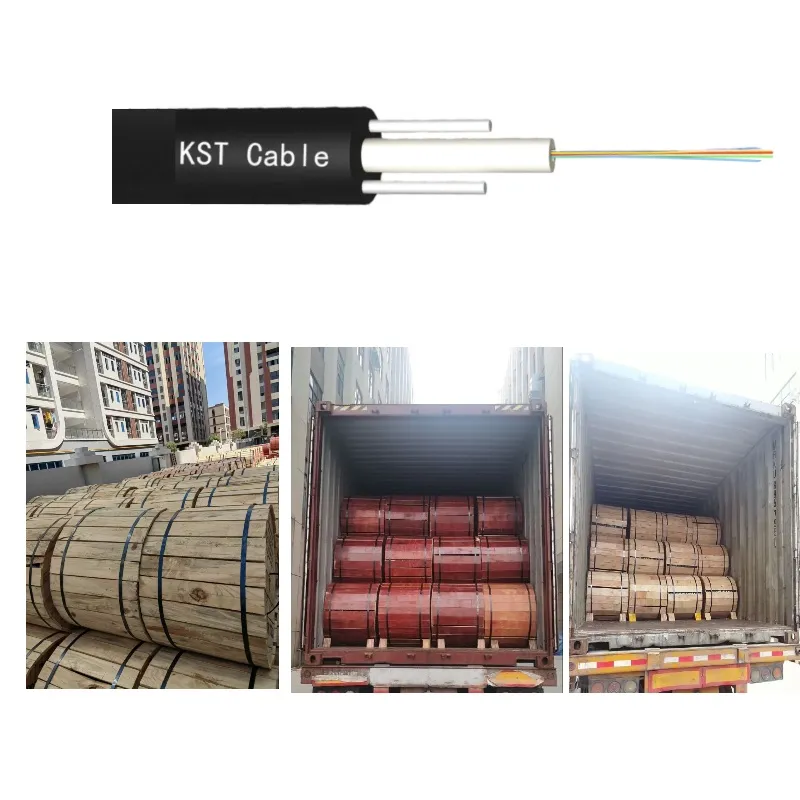

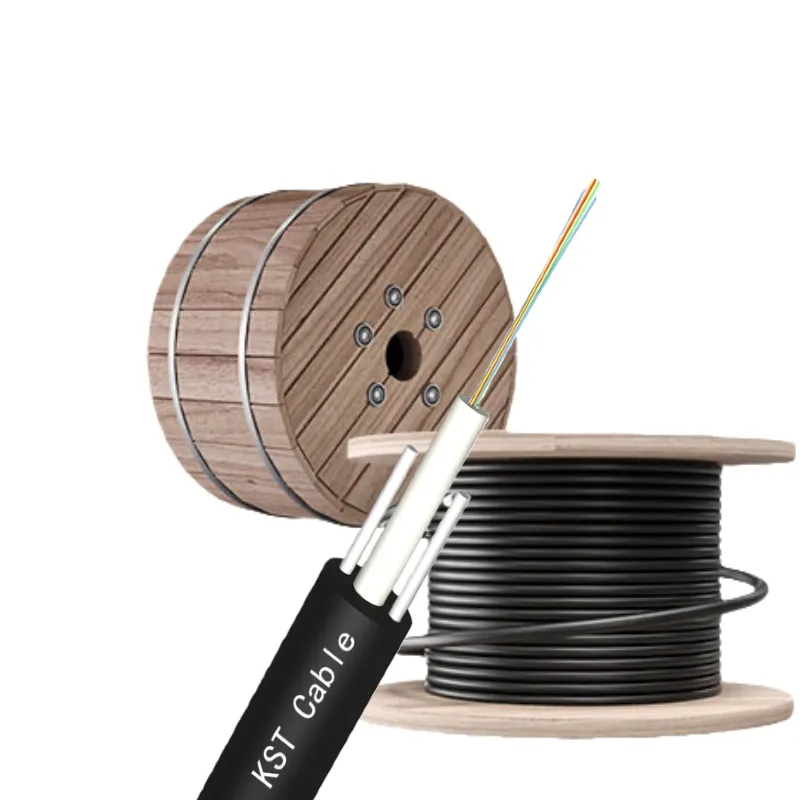

The GYFXTY optical cable features a 250µm fiber in a high-modulus loose tube filled with waterproof compound, reinforced with FRP rods and protected by a polyethylene jacket.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.

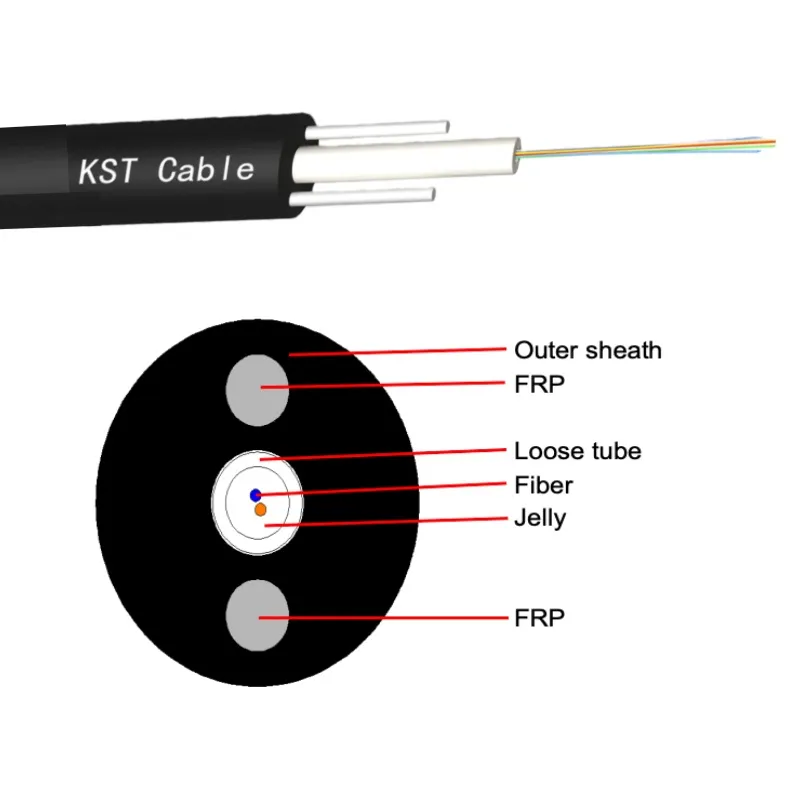

Cable construction details :
| Items | Description | |||||||
| Number of fiber | 2-12F | |||||||
| Loose tube | diameter(mm） | 2.0±0.05 | ||||||
| color | Natural | |||||||
| material | PBT | |||||||
| Central strength member | material | FRP | ||||||
| Outer sheath | material | PE | ||||||
| color | Black | |||||||
| diameter(mm） | 6.0±0.2 | |||||||
| Min Bending Radius(mm) | Static | 15D | ||||||
| Min Bending Radius(mm) | Dynamic | 10D | ||||||
| Tensile strength（N） | Long term | 400N | ||||||
| Short term | 800N | |||||||
| Crush Load (N/100mm) | Long term | 500N | ||||||
| Short term | 1500N | |||||||
| Temperature range, installation | -5 °C to 50 °C | |||||||
| Temperature range, operation | -20 °C to 70 °C | |||||||
| Temperature range, storage | -20 °C to 70 °C | |||||||
Fiber characteristic:
| Optical characteristics | ||||||||||
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
