It adopts a loose tube structure, and the internal optical fibers are generally arranged in a loose packing manner, which is convenient for maintenance and repair. In most cases, non-metallic materials, such as polyethylene (PE), are used. This design helps to reduce weight and improve corrosion resistance.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.

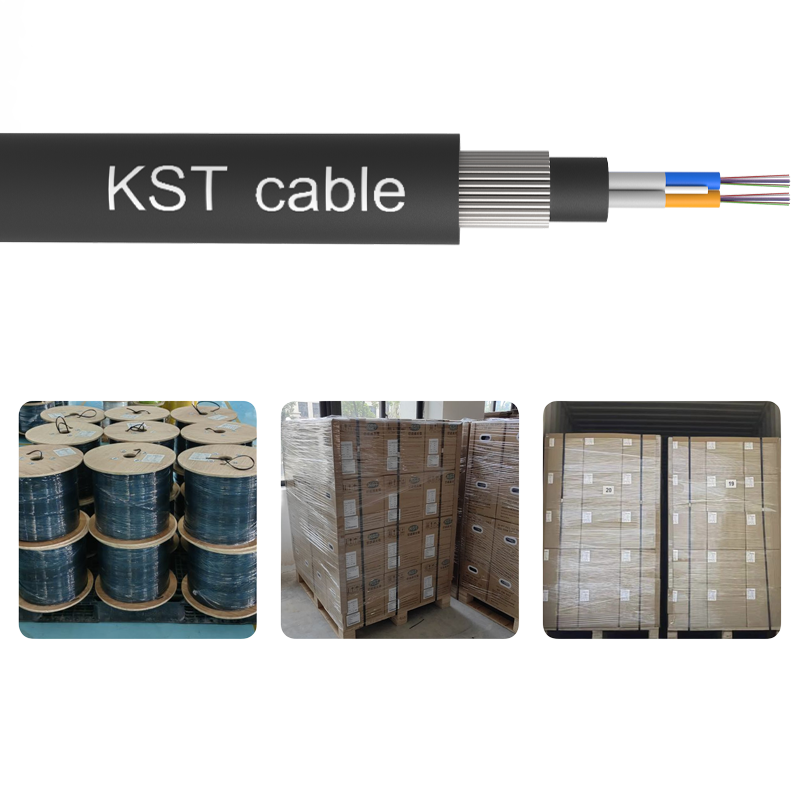

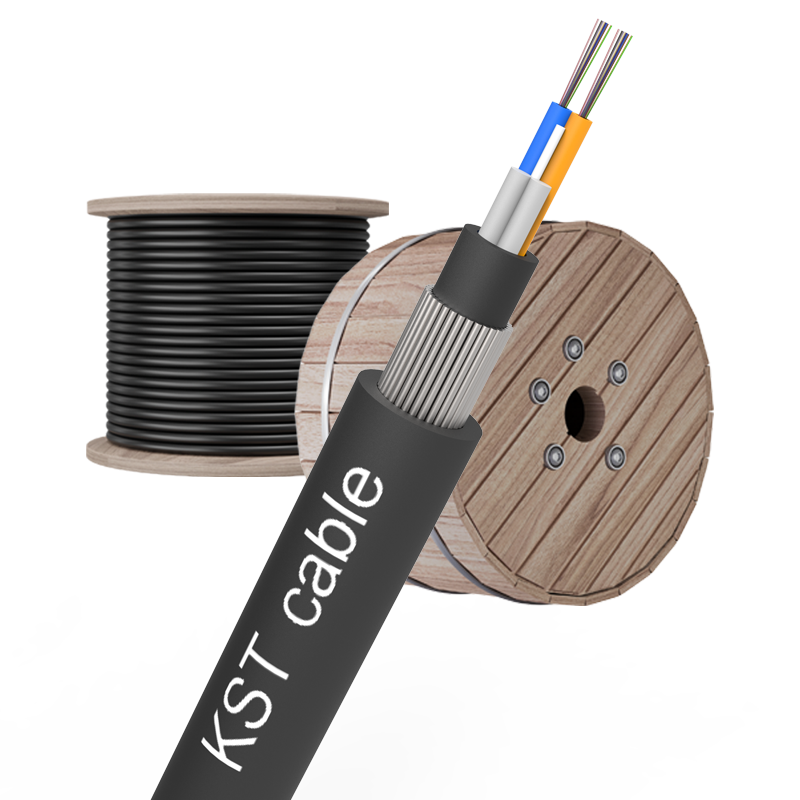

Cable construction details :
| Items | Description | ||||||
| Number of fiber | 2-72F | ||||||
| Number of fibers per tube | 12 | ||||||
| Number of loose tube | 4 | ||||||
| Loose tube | diameter(mm） | 2.0 | |||||
| material | PBT | ||||||
| Central strength member | material | FRP | |||||
| Water blocking system | material | Water blocking yarn and gel | |||||
| Armoring | material | Steel wire | |||||
| Inner sheath | material | PE | |||||
| diameter(mm） | 8.0 | ||||||
| Outer sheath | material | PE | |||||
| color | Black | ||||||
| diameter(mm） | 13.6 | ||||||
| Cable weight | 300kg/km | ||||||
| Storage or transportation（℃） | -30+80 | ||||||
| Installation temperature（℃） | -30+80 | ||||||
| Operation and transport temperature（℃） | -30+80 | ||||||
| Min Bending Radius(mm) | Dynamic | 20D | |||||
| Min Bending Radius(mm) | Static | 30D | |||||
| Tensile Strength(N) | Short term | ≧8000 | |||||
| Crush Load (N/100mm) | Long term | 1100 | |||||
| Crush Load (N/100mm) | Short term | 2500 | |||||
| Impact | Impact energy：10N m | ||||||
| Repeat bending | Bending Radius:20D | ||||||
Optical characteristics：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
