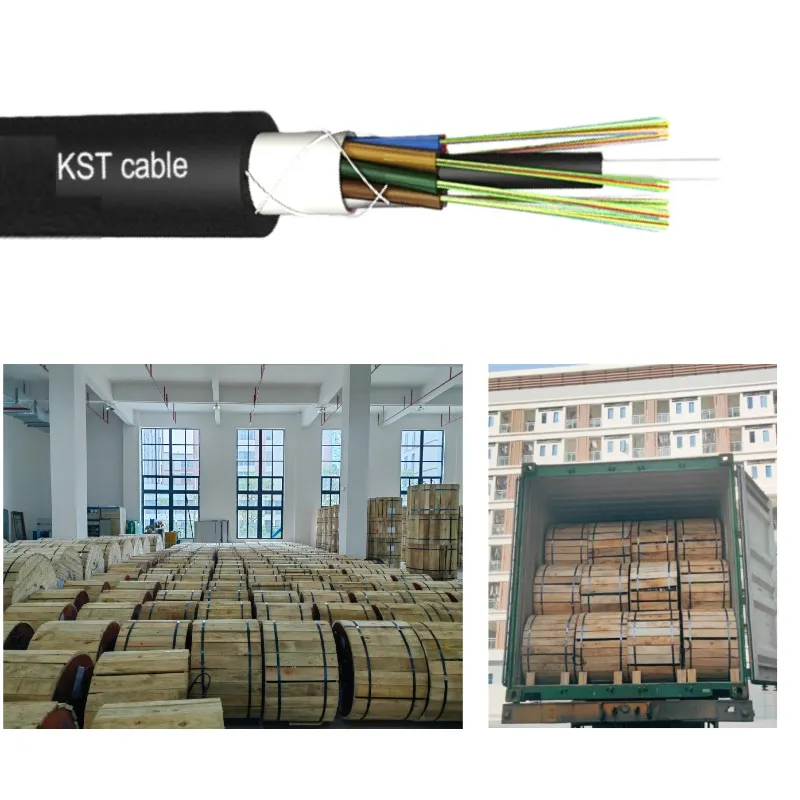

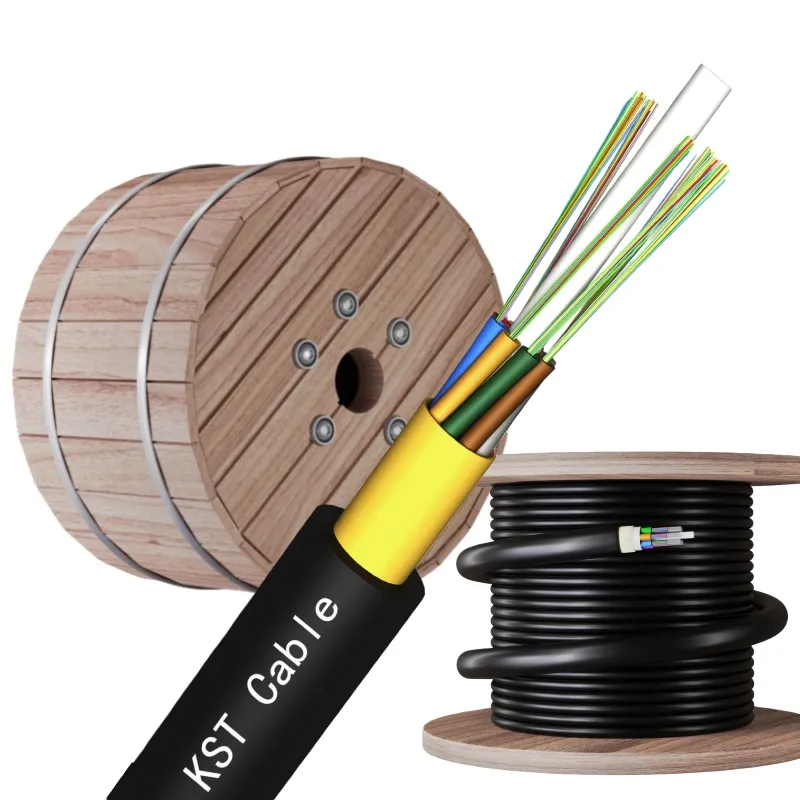

GYFTY optical fiber cable features a loose tube structure with 250µm fibers, waterproof compound, and FRP central strength member. It is designed for aerial and duct installation.
Troubleshooting assistance and system compatibility solutions, available whenever you need them.
Tailored fiber count, length, and sheath color options to meet your specific requirements.

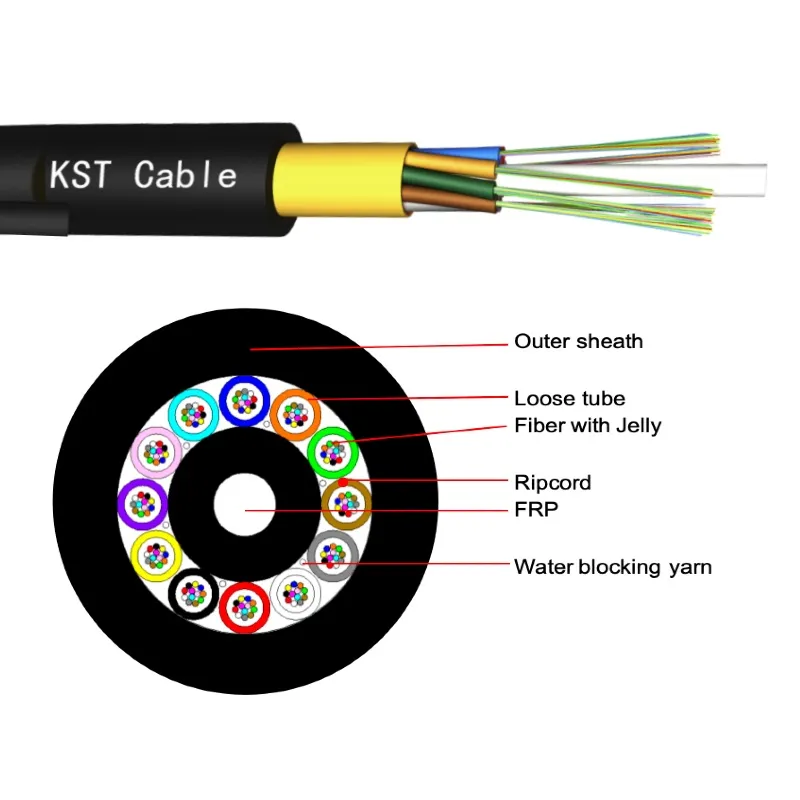

Cable construction details :
| Items | Description | |||||||
| Loose tube | Diameter(mm） | 2.0±0.1 | ||||||
| Material | PBT | |||||||
| Strength member | Material | Aramid yarn | ||||||
| Central strength member | Material | FRP | ||||||
| Water blocking system | Material | Water blocking yarn and water blocking tape | ||||||
| Ripcord | Color | Red | ||||||
| Outer sheath | material | PE | ||||||
| Color | Black | |||||||
| Diameter(mm） | 8.6±0.3 | |||||||
| Min Bending Radius(mm) | Long term | 10D | ||||||
| Min Bending Radius(mm) | Short term | 20D | ||||||
| Tensile strength（N） | Long term | 800 | ||||||
| Short term | 1500 | |||||||
| Crush Load (N/100mm) | Long term | 1000 | ||||||
| Short term | 2000 | |||||||
| Storage or transportation（℃） | -20+70 | |||||||
| Operation and transport temperature（℃） | -20+70 | |||||||
Optical characteristics：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
